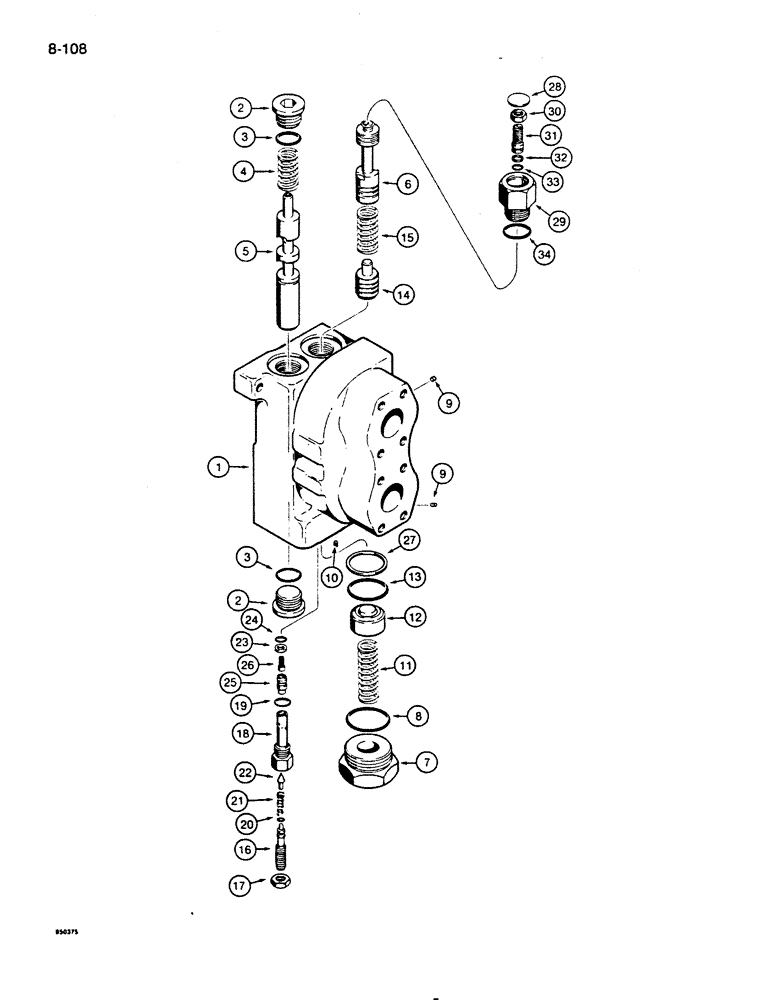

Запчасти Case 855D (8-108) - D87071 INLET AND OUTLET SECTION, USED ON ALL MODELS EXCEPT DOZER MODELS W/ A BACKHOE (08) - HYDRAULICS

D87071

VALVE

inlet and outlet, identification No.106, used on all models except dozer models with a backhoe

1шт.

The repair main relief valve is not preset at the correct pressure setting for any application on this tractor. See the service manual for the correct setting and procedure. For the inlet/outlet section used on dozer models with a backhoe see Figure 8-110.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

4

D78464

SPRING

regeneration spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - flow contol

1шт.

7

D78462

PLUG

hex head

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Plug

1шт.

9

D78456

PLUG

flow

2шт.

10

D78455

PLUG

pressure

1шт.

11

R30171

SPRING

piston

1шт.

12

D78461

PISTON ASSY.

flow control

1шт.

13

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

piston

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - spring, flow control spool

1шт.

15

D78458

SPRING

flow control spool

1шт.

N7805

VALVE PRESSURE RELIE

inlet/outlet section

1шт.

The repair main relief valve is not preset at the correct pressure setting for any application on this tractor. See the service manual for the correct setting and procedure. For the inlet/outlet section used on dozer models with a backhoe see Figure 8-110.

1шт.

16

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

adjusting, main relief assembly

1шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - main relief assembly

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Body, inner

1шт.

20

A51274

O-RING,0.145" ID x 0.285" OD

body, outer

1шт.

21

D78468

SPRING

plunger

1шт.

22

D78469

PLUNGER

main relief assembly

1шт.

23

L35305

RING

1шт.

24

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

seat

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

26

NSS

NOT SOLD SEPARAT

FILTER - main relief assembly, wire-mesh, cylinder-shaped

1шт.

27

D87079

RING

piston O-ring

1шт.

28

D87075

COVER

flow control, spool

1шт.

D87077

PLUG

flow control spool

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

32

D87094

BACK-UP RING

screw O-ring

1шт.

33

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

screw

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.
