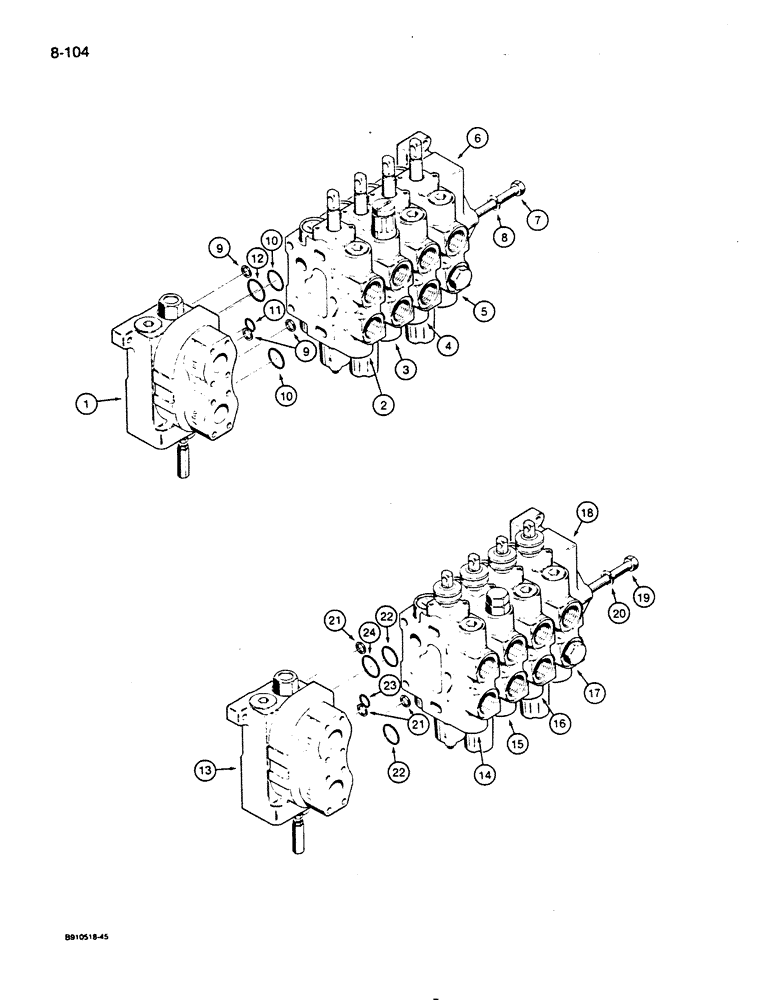

Запчасти Case 855D (8-104) - R46554 & R56569 FOUR SPOOL CONTROL VALVES, ANGLE TILT DOZER MODELS W/BACKHOE (08) - HYDRAULICS

R46554

VALVE

four spool, angle tilt dozer models, order R56569 valve assembly below, Includes: Ref. 1 - 12

1шт.

1

N7485

VALVE

inlet and outlet, identification No. 108, parts list Figure 8-110

1шт.

2

D87073

SEGMENT

dozer tilt, identification No. 217, parts list Figure 8-126, order N14017 section, ref 14 below

1шт.

3

D87074

VALVE

dozer lift, identification No. 307, parts list Figure 8-118, order N14018 section, ref 15 below

1шт.

4

D87073

SEGMENT

dozer angle, identification No. 217, parts list Figure 8-126, order N14017 section, ref 16 below

1шт.

5

D87096

VALVE

backhoe, identification No. 220, parts list Figure 8-130, order S300678 section, ref 17 below

1шт.

6

D87072

COVER ASSY

end

1шт.

7

D74375

BOLT

tie

3шт.

8

192-22

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections

15шт.

R37003

SEAL KIT

Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R56569

VALVE

four spool, angle tilt dozer models, Includes: Ref. 13 - 24

1шт.

13

N7485

VALVE

inlet and outlet, identification No. 108, parts list Figure 8-110, R56569 4 spool control valve

1шт.

14

N14017

VALVE

dozer tilt, identification No. 252, parts list Figure 8-128, R56569 4 spool control valve

1шт.

15

N14018

VALVE

dozer lift, identification No. 316, parts list Figure 8-120, R56569 4 spool control valve

1шт.

16

N14017

VALVE

dozer angle, identification No. 252, parts list Figure 8-128, R56569 4 spool control valve

1шт.

17

S300678

VALVE

backhoe, identification No. 261, parts list Figure 8-132, R56569 4 spool control valve

1шт.

18

D87072

COVER ASSY

end, R56569 4 spool control valve

1шт.

19

D74375

BOLT

tie, R56569 4 spool control valve

3шт.

20

192-22

LOCK WASHER,7/16"

R56569 4 spool control valve

3шт.

21

D77566

SHIM,.0030" Thk

Sections, R56569 4 spool control valve

15шт.

R37003

SEAL KIT

R56569 4 spool control valve, Includes: Ref. 22 - 24

5шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56569 4 spool control valve

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56569 4 spool control valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56569 4 spool control valve

1шт.
