(8-102) - R46551 & R56566THREE SPOOL CONTROL VALVE, ANGLE TILT DOZER MODELS

Запчасти Case 855D (8-102) - R46551 & R56566THREE SPOOL CONTROL VALVE, ANGLE TILT DOZER MODELS (08) - HYDRAULICS

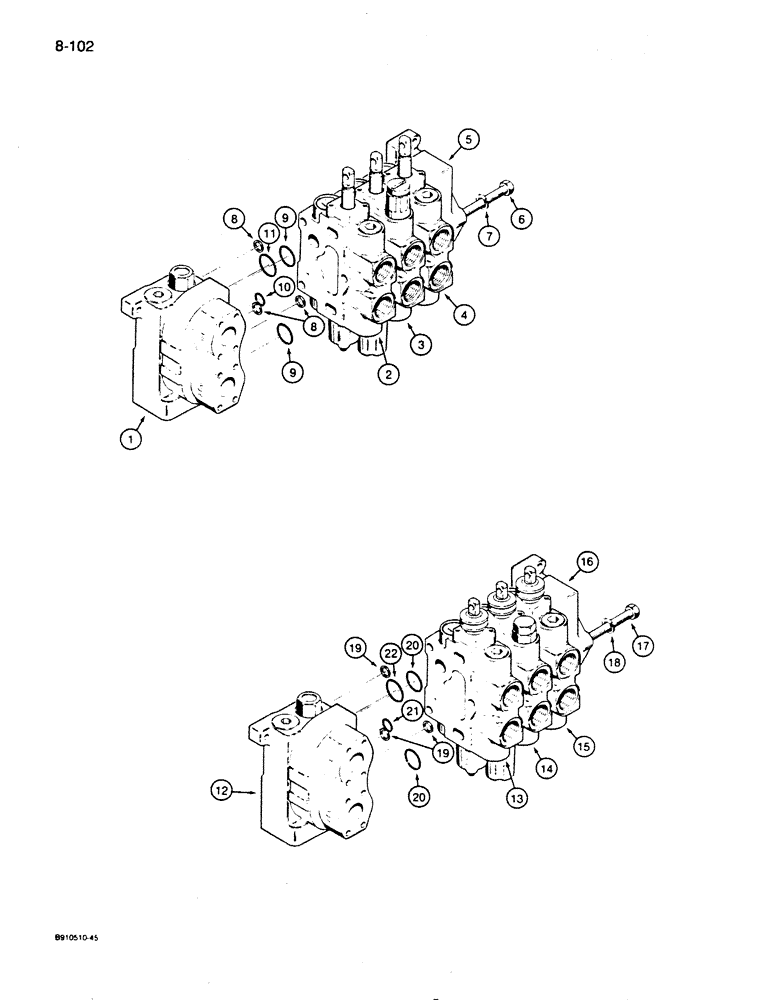

Схема запчастей Case 855D - (8-102) - R46551 & R56566THREE SPOOL CONTROL VALVE, ANGLE TILT DOZER MODELS (08) - HYDRAULICS
11
8
12
17
21
20
2
20
19
18
8
4
3
9
6
7
13
14
16
9
5
22
10
1
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R46551

VALVE

three spool, angle tilt dozer models, order R56566 valve assembly below, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108

1шт.

2

D87073

SEGMENT

dozer tilt, identification No. 217, parts list Figure 8-126, order N14017 section, ref 13 below

1шт.

3

D87074

VALVE

dozer lift, identification No. 306, parts list Figure 8-118, order N14018 section, ref 14 below

1шт.

4

D87073

SEGMENT

dozer angle, identification No. 220, parts list Figure 8-126, order N14017 section, ref 15 below

1шт.

5

D87072

COVER ASSY

end

1шт.

6

D74374

BOLT

tie

3шт.

7

192-22

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections

12шт.

R37003

SEAL KIT

Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R56566

VALVE

three spool, Includes: Ref. 12 - 22

1шт.

12

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108, R56566 3 spool control valve

1шт.

13

N14017

VALVE

dozer tilt, identification No. 252, parts list Figure 8-128, R56566 3 spool control valve

1шт.

14

N14018

VALVE

dozer lift, identification No. 316, parts list Figure 8-120, R56566 3 spool control valve

1шт.

15

N14017

VALVE

dozer angle, identification No. 252 parts list Figure 8-128, R56566 3 spool control valve

1шт.

16

D87072

COVER ASSY

end, R56566 3 spool control valve

1шт.

17

D74374

BOLT

tie, R56566 3 spool control valve

3шт.

18

192-22

LOCK WASHER,7/16"

R56566 3 spool control valve

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R56566 3 spool control valve

12шт.

R37003

SEAL KIT

R56566 3 spool control valve, Includes: Ref. 20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56566 3 spool control valve

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56566 3 spool control valve

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56566 3 spool control valve

1шт.
