(8-100) - R40893 & R56563 TWO SPOOL CONTROL VALVES, TILT DOZER MODELS

Запчасти Case 855D (8-100) - R40893 & R56563 TWO SPOOL CONTROL VALVES, TILT DOZER MODELS (08) - HYDRAULICS

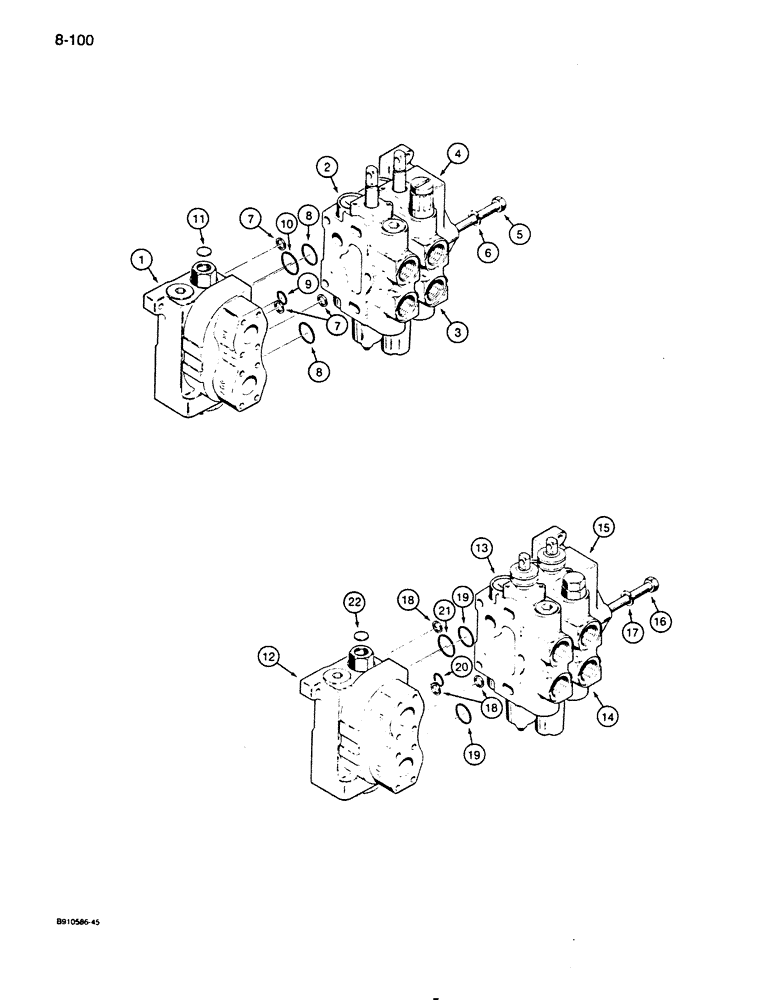

Схема запчастей Case 855D - (8-100) - R40893 & R56563 TWO SPOOL CONTROL VALVES, TILT DOZER MODELS (08) - HYDRAULICS
19
22
8
8
13
2
1
18
7
11
18
5
4
21
7
14
17
6
20
12
9
15
3
16
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R40893

VALVE

two spool, tilt dozer models, order R56563 valve assembly below, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108

1шт.

2

D87073

SEGMENT

dozer tilt, identification No. 217, parts list Figure 8-126, order N14017 section, ref. 13 below

1шт.

3

D87074

VALVE

dozer lift, identification No. 307, parts list Figure 8-118, order N14018 section, ref. 14 below

1шт.

4

D87072

COVER ASSY

end

1шт.

5

D74374

BOLT

tie

3шт.

6

192-22

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections

9шт.

R37003

SEAL KIT

Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

11

D87075

COVER

dust, steel

1шт.

R56563

VALVE

two spool, tilt dozer models, Includes: Ref. 12 - 22

1шт.

12

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108, R56563 2 spool control valve

1шт.

13

N14017

VALVE

dozer tilt, identification No. 252, parts list Figure 8-128, R56563 2 spool control valve

1шт.

14

N14018

VALVE

dozer lift, identification No. 316, parts list Figure 8-120, R56563 2 spool control valve

1шт.

15

D87072

COVER ASSY

end, R56563 2 spool control valve

1шт.

16

D74374

BOLT

tie, R56563 2 spool control valve

3шт.

17

192-22

LOCK WASHER,7/16"

R56563 2 spool control valve

3шт.

18

D77566

SHIM,.0030" Thk

Sections, R56563 2 spool control valve

9шт.

R37003

SEAL KIT

R56563 2 spool control valve, Includes: Ref. 19 - 21

3шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56563 2 spool control valve

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56563 2 spool control valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56563 2 spool control valve

1шт.

22

D87075

COVER

dust, steel, R56563 2 spool control valve

1шт.
