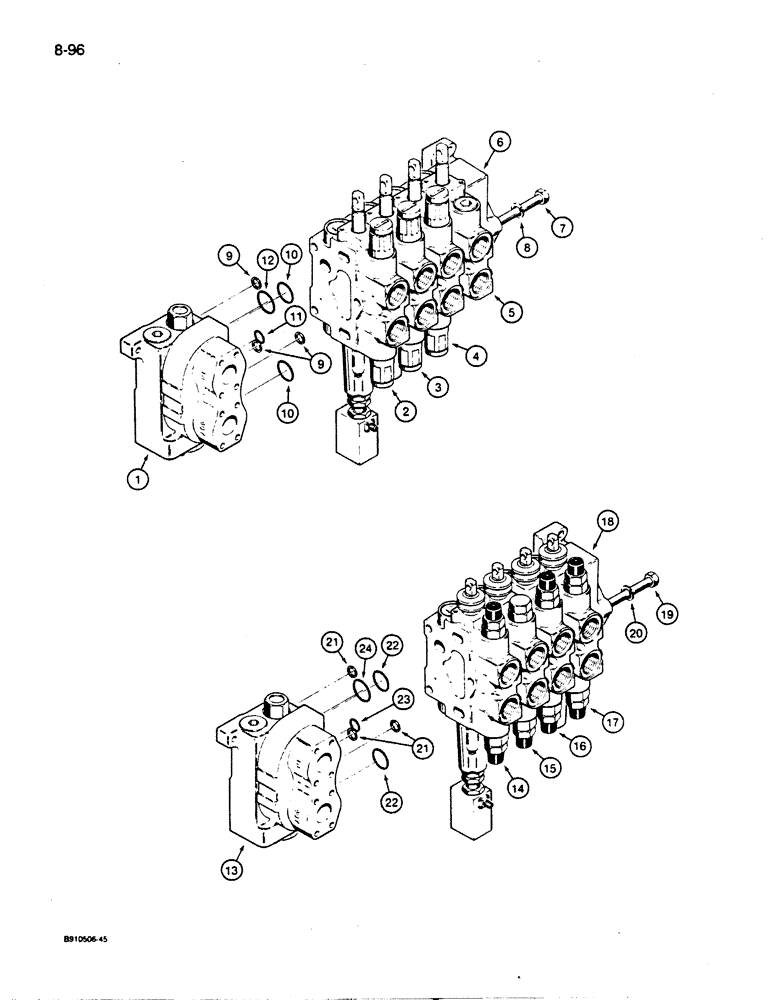

Запчасти Case 855D (8-096) - R40890 & R56562 FOUR SPOOL CONTROL VALVES, LOADER MODELS W/RIPPER & CLAM BUCKET (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
R40890
LOCK VALVE
four spool, loader models, order R56562 valve assembly below, Includes: Ref. 1 - 12
1шт.
1
D87071
VALVE
inlet and outlet, identification No. 106, parts list Figure 8-108
1шт.
2
D88764
LOCK VALVE
loader bucket, identification No. 405, parts list Figure 8-122, order S300429 section, ref 14 below
1шт.
3
D88765
LOCK VALVE
loader lift, identification No. 306, parts list Figure 8-114, order S300430 section, ref 15 below
1шт.
4
D88766
VALVE
clam bucket, identification No. 214, parts list Figure 8-134, order S300435 section, ref 16 below
1шт.
5
D87078
VALVE
ripper, identification No. 215, parts list Figure 8-134, order S300435 section, ref 17 below
1шт.
6
D87072
COVER ASSY
end
1шт.
7
D74375
BOLT
tie
3шт.
8
192-22
LOCK WASHER,7/16"
3шт.
9
D77566
SHIM,.0030" Thk
Sections
15шт.
R37003
SEAL KIT
Includes: Ref. 10 - 12
5шт.
10
NSS
NOT SOLD SEPARAT
O-RING - 1-5/16" (32 mm) OD
2шт.
11
NSS
NOT SOLD SEPARAT
O-RING - 1" (25 mm) OD
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - 1-1/2" (37 mm) OD
1шт.
R56562
VALVE
four spool, loader , Includes: Ref. 13 - 24
1шт.
13
D87071
VALVE
inlet and outlet, identification No. 106, parts list Figure 8-108, R56562 4 spool control valve
1шт.
14
S300429
LOCK VALVE
loader bucket, identification No. 413, parts list Figure 8-122, R56562 4 spool control valve
1шт.
15
S300430
LOCK VALVE
loader lift, identification No. 319, parts list Figure 8-116, R56562 4 spool control valve
1шт.
16
S300435
VALVE
clam bucket, identification No. 260, parts list Figure 8-136, R56562 4 spool control valve
1шт.
17
S300435
VALVE
ripper, identification No. 260, parts list Figure 8-136, R56562 4 spool control valve
1шт.
18
D87072
COVER ASSY
end, R56562 4 spool control valve
1шт.
19
D74375
BOLT
tie, R56562 4 spool control valve
3шт.
20
192-22
LOCK WASHER,7/16"
R56562 4 spool control valve
3шт.
21
D77566
SHIM,.0030" Thk
Sections, R56562 4 spool control valve
15шт.
R37003
SEAL KIT
R56562 4 spool control valve, Includes: Ref. 22 - 24
5шт.
22
NSS
NOT SOLD SEPARAT
O-RING - 1-5/16" (32 mm) OD, R56562 4 spool control valve loader models with ripper & clam bucket
2шт.
23
NSS
NOT SOLD SEPARAT
O-RING - 1" (25 mm) OD, R56562 4 spool control valve loader models with ripper & clam bucket
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - 1-1/2" (37 mm) OD
1шт.
Выбрано товаров: 28
