Запчасти Case 855D (8-094) - R46555 & R56570 THREE SPOOL CONTROL VALVES, LOADER MODELS WITH BACKHOE (08) - HYDRAULICS

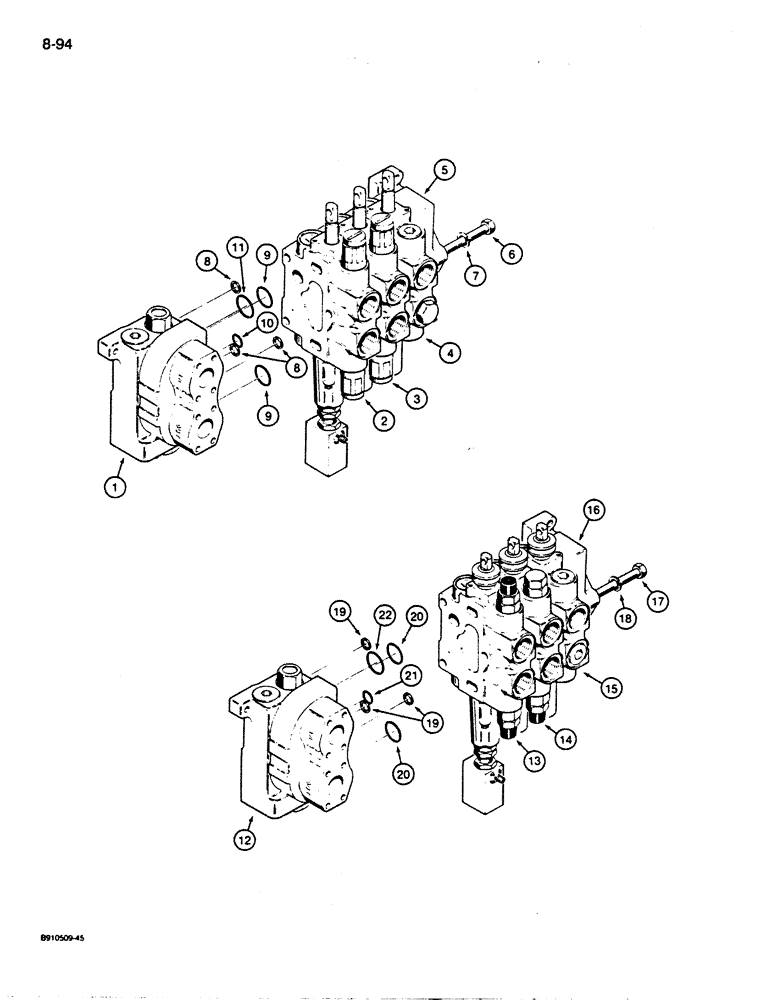

Схема запчастей Case 855D - (8-094) - R46555 & R56570 THREE SPOOL CONTROL VALVES, LOADER MODELS WITH BACKHOE (08) - HYDRAULICS
7
20
17
6
8
14
13
4
18
22
2
19
11
5
12
1
3
21
16
9
20
19
9
8
15
10

Артикул

Название

Примечание

Количество

R46555

VALVE

three spool, loader models, order R56570 valve assembly below

1шт.

1

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108

1шт.

2

D88764

LOCK VALVE

loader bucket, identification No. 405, parts list Figure 8-122, order S300429 section, ref 13 below

1шт.

3

D88765

LOCK VALVE

loader lift, identification No. 306, parts list Figure 8-114, order S300430 section, ref 14 below

1шт.

4

D87096

VALVE

backhoe, identification No. 220, parts list Figure 8-130, order S300678 section, ref 15 belowø

1шт.

5

D87072

COVER ASSY

end

1шт.

6

D74374

BOLT

tie

3шт.

7

192-22

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections

12шт.

R37003

SEAL KIT

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R56570

VALVE

three spool

1шт.

12

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108, R56570 3-spool control valve

1шт.

13

S300429

LOCK VALVE

loader bucket, identification No. 413, parts list Figure 8-122, R56570 3-spool control valve models with backhoe

1шт.

14

S300430

LOCK VALVE

loader lift, identification No. 319, parts list Figure 8-116, R56570 3-spool control valve models with backhoe

1шт.

15

S300678

VALVE

backhoe, identification No. 261 parts list Figure 8-132, R56570 3-spool control valve loader models with

1шт.

16

D87072

COVER ASSY

end, R56570 3-spool control valve loader models with backhoe

1шт.

17

D74374

BOLT

tie, R56570 3-spool control valve loader models with backhoe

3шт.

18

192-22

LOCK WASHER,7/16"

R56570 3-spool control valve loader models with backhoe

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R56570 3-spool control valve loader models with backhoe

12шт.

R37003

SEAL KIT

R56570 3-spool control valve loader models with backhoe

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56570 3 spool control valve loader models with backhoe

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56570 3 spool control valve loader models with backhoe

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56570 3 spool control valve loader models with backhoe

1шт.

Выбрано товаров: 26
