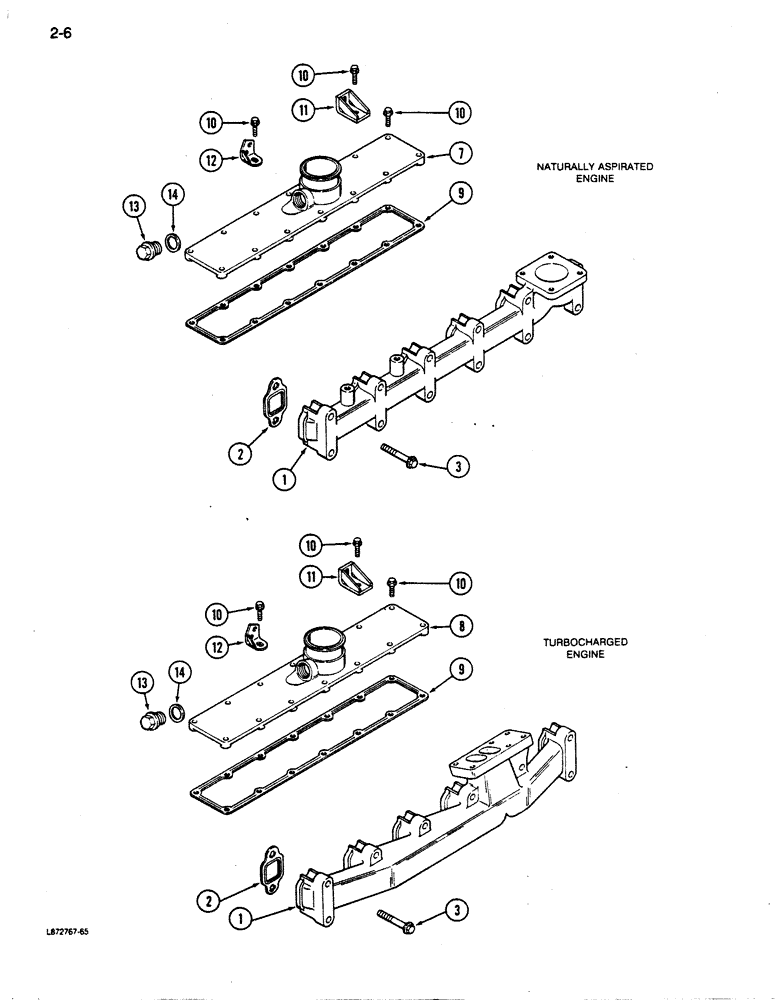

Запчасти Case 855D (2-06) - MANIFOLDS, 6-590 ENGINE, 6T-590 ENGINE, EXHAUST (02) - ENGINE

1

J901326

MANIFOLD

exhaust, naturally aspirated

1шт.

1

J901683

MANIFOLD

exhaust, turbocharged

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

12шт.

7

NSS

NOT SOLD SEPARAT

COVER - intake manifold, naturally aspirated (Order A77417 kit)

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - intake manifold, turbocharged (Order A77418 kit)

1шт.

9

J914029

GASKET

intake cover

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

(Replaces J904341), Intake

16шт.

11

REF

INSTRUCTION

fuel line (See Section 3), intake

2шт.

12

REF

INSTRUCTION

fuel line (See Section 3), intake

2шт.

13

J907185

PLUG

manifold (If equipped), intake

1шт.

14

J906773

WASHER

plug sealing (If equipped), intake

1шт.

A77417

VALVE

KIT - intake manifold, naturally aspirated (Includes: Ref. 7, 13 & 14)

1шт.

A77418

KIT

intake manifold, turbocharged (Includes: Ref. 8, 13 & 14)

1шт.
