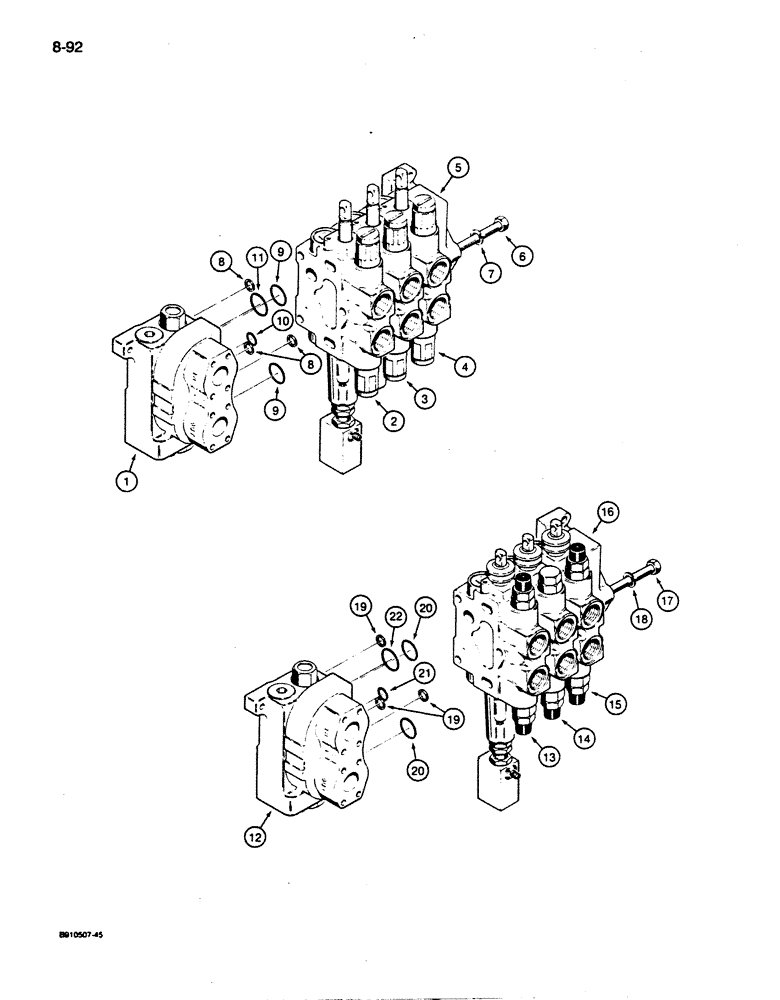

Запчасти Case 855D (8-092) - R40889 THREE SPOOL CONTROL VALVE, LOADER MODELS W/RIPPER OR CLAM BUCKET (08) - HYDRAULICS

R40889

LOCK VALVE

three spool, loader models, order R56561 valve assembly below, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108

1шт.

2

D88764

LOCK VALVE

loader bucket, identification No. 405, parts list Figure 8-122, order S300429 section, ref 13 below

1шт.

3

D88765

LOCK VALVE

loader lift, identification No. 306, parts list Figure 8-114, order S300430 section, ref 14 below

1шт.

4

D88766

VALVE

ripper or clam bucket, identification No. 214, parts list Figure 8-134, order S300435 section, ref 15 below

1шт.

5

D87072

COVER ASSY

end

1шт.

6

D74374

BOLT

tie

3шт.

7

192-22

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections

12шт.

R37003

SEAL KIT

Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R56561

VALVE

three spool, loader models with ripper or clam bucket, Includes: Ref. 12 - 22

1шт.

12

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108, R56561 3-spool control valve loader models with ripper or clam bucket

1шт.

13

S300429

LOCK VALVE

loader bucket, identification No. 413, parts list Figure 8-122, R56561 3-spool control valve models with ripper or clam

1шт.

14

S300430

LOCK VALVE

loader lift, identification No. 319, parts list Figure 8-116, R56561 3-spool control valve models with ripper or clam bucket

1шт.

15

S300435

VALVE

ripper or clam bucket, identification No. 260, Fig 8-136, R56561, models w/ ripper or clam bucket

1шт.

16

D87072

COVER ASSY

end, R56561 3-spool control valve loader models with ripper or clam bucket

1шт.

17

D74374

BOLT

tie, R56561 3-spool control valve loader models with ripper or clam bucket

3шт.

18

192-22

LOCK WASHER,7/16"

R56561 3-spool control valve loader models with ripper or clam bucket

3шт.

19

D77566

SHIM,.0030" Thk

Sections, R56561 3-spool control valve loader models with ripper or clam bucket

12шт.

R37003

SEAL KIT

R56561 3-spool control valve loader models with ripper or clam bucket, Includes: Ref. 20 - 22

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56561 3-spool control valve loader models with ripper or clam bucket

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56561 3-spool control valve loader models with ripper or clam bucket

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56561 3-spool control valve loader models with ripper or clam bucket

1шт.
