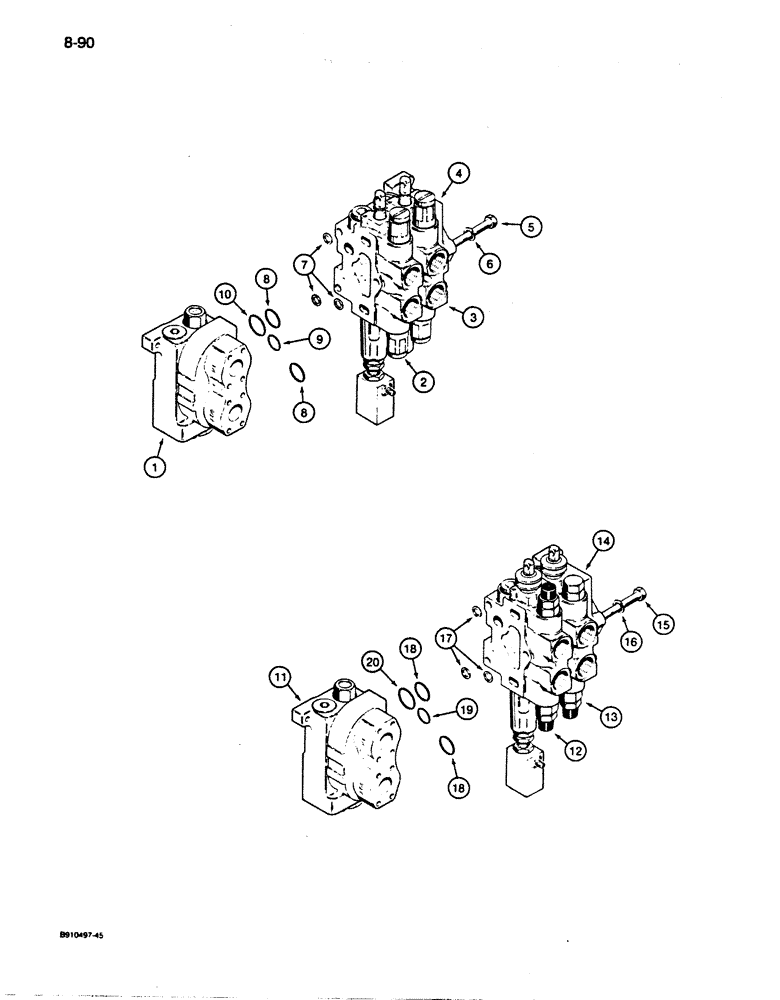

Запчасти Case 855D (8-090) - R40888 TWO SPOOL CONTROL VALVE, LOADER MODELS (08) - HYDRAULICS

R40888

LOCK VALVE

two spool, loader models, order R56560 valve assembly below, Includes: Ref. 1 - 10

1шт.

1

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108

1шт.

2

D88764

LOCK VALVE

loader bucket, identification No. 405, parts list Figures 8-122 and 8-124, order S300429 section, ref. 12 below

1шт.

3

D88765

LOCK VALVE

loader lift, identification No. 306, parts list Figure 8-114, order S300430 section, ref. 13 below

1шт.

4

D87072

COVER ASSY

end

1шт.

5

D74374

BOLT

tie

3шт.

6

192-22

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections

9шт.

R37003

SEAL KIT

Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R56560

VALVE

two spool, loader models, Includes: Ref. 11 - 20

1шт.

11

D87071

VALVE

inlet and outlet, identification No. 106, parts list Figure 8-108, R56560 control valve assembly 2 spool loader models

1шт.

12

S300429

LOCK VALVE

loader bucket, identification No. 413, parts list Figures 8-122 and 8-124, R56560 control valve assembly 2 spool models

1шт.

13

S300430

LOCK VALVE

loader lift, identification No. 319, parts list Figure 8-116, R56560 control valve assembly 2 spool models

1шт.

14

D87072

COVER ASSY

end, R56560 control valve assembly 2 spool loader models

1шт.

15

D74374

BOLT

tie, R56560 control valve assembly 2 spool loader models

3шт.

16

192-22

LOCK WASHER,7/16"

R56560 control valve assembly 2 spool loader models

3шт.

17

D77566

SHIM,.0030" Thk

Sections, R56560 control valve assembly 2 spool loader models

9шт.

R37003

SEAL KIT

R56560 control valve assembly 2 spool loader models, Includes: Ref. 18 - 20

3шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R56560 control valve assembly 2 spool loader models

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R56560 control valve assembly 2 spool loader models

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R56560 control valve assembly 2 spool loader models

1шт.
