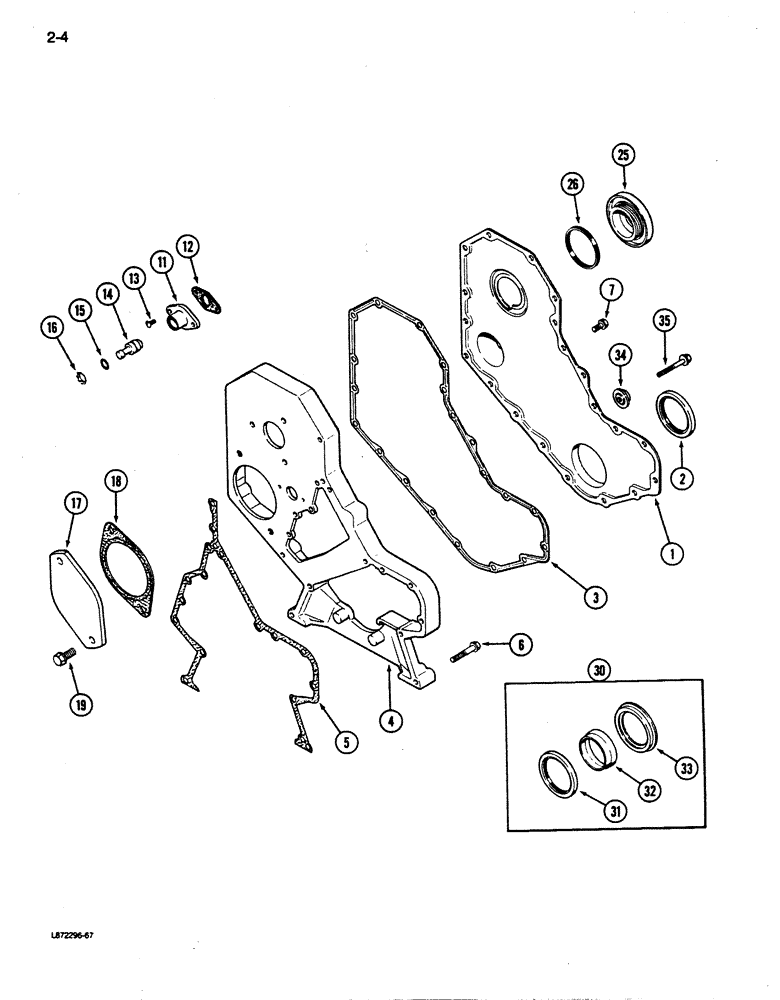

Запчасти Case 855D (2-04) - FRONT GEAR COVER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankcase front (Order Ref.30)

1шт.

3

J914385

GASKET,1.02mm Thk

front cover (Replaces J910500)

1шт.

4

J920518

HOUSING

timing gear (Replaces J910411)

1шт.

5

J916131

GASKET

gear housing (Relaces J907836)

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

Ref. Item #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite) by TSG bb 3/24/98

1шт.

11

J919683

HOUSING

timing pin (Replaces J905933)

1шт.

12

J905595

GASKET

pin housing, timing

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

15

J913994

O-RING

sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

17

J914868

COVER

accessory drive (Replaces A77440)

1шт.

18

J919601

GASKET

cover plate (Replaces A77441)

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

25

J903463

PLUG,M63 x 5

front access

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

30

J904353

GASKET KIT

oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

34

J912772

RETAINER

bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
