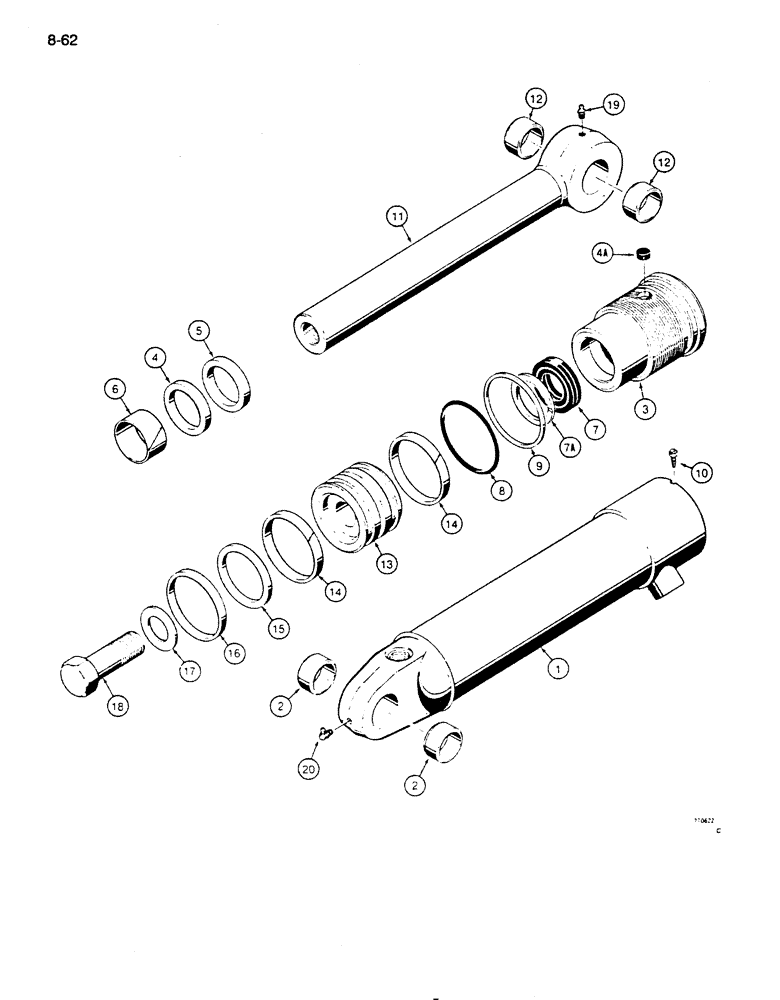

Запчасти Case 855D (8-062) - G101214 AND G101215 RIPPER CYLINDERS (08) - HYDRAULICS

G101214

CYLINDER ASSY.

ripper, right-hand, 3-1/4" (83 mm) ID x 8-13/32" (213_mm) stroke, Includes: Ref. 1 - 20

1шт.

1

G100608

TUBE,16.46" L

G101214 cylinder, right-hand, Includes: Ref. 2

1шт.

1

G100609

TUBE,16.46" L

G101215 cylinder, left-hand, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

both tubes

2шт.

G106164

GLAND

cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder, Includes: Ref. 3 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

rod

1шт.

Part of Seal Kit, P/N G109417

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit, P/N G109417

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109417

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP - piston rod, service option - severe heat or cold

1шт.

7a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of Seal Kit, P/N G109417

1шт.

8

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109417

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

gland O-ring

1шт.

Part of Seal Kit, P/N G109417

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

11

G100617

ROD

piston, 1-3/4" (44 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

13

G100642

PISTON

cylinder

1шт.

14

S109445

RING,82.55mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N G109417

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

piston seal

1шт.

Part of Seal Kit, P/N G109417

1шт.

16

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N G109417

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

hardened

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G109417

GASKET KIT

Includes: Ref. 5, 6, 7, 7A, 8, 9, 14, 15, & 16

1шт.
