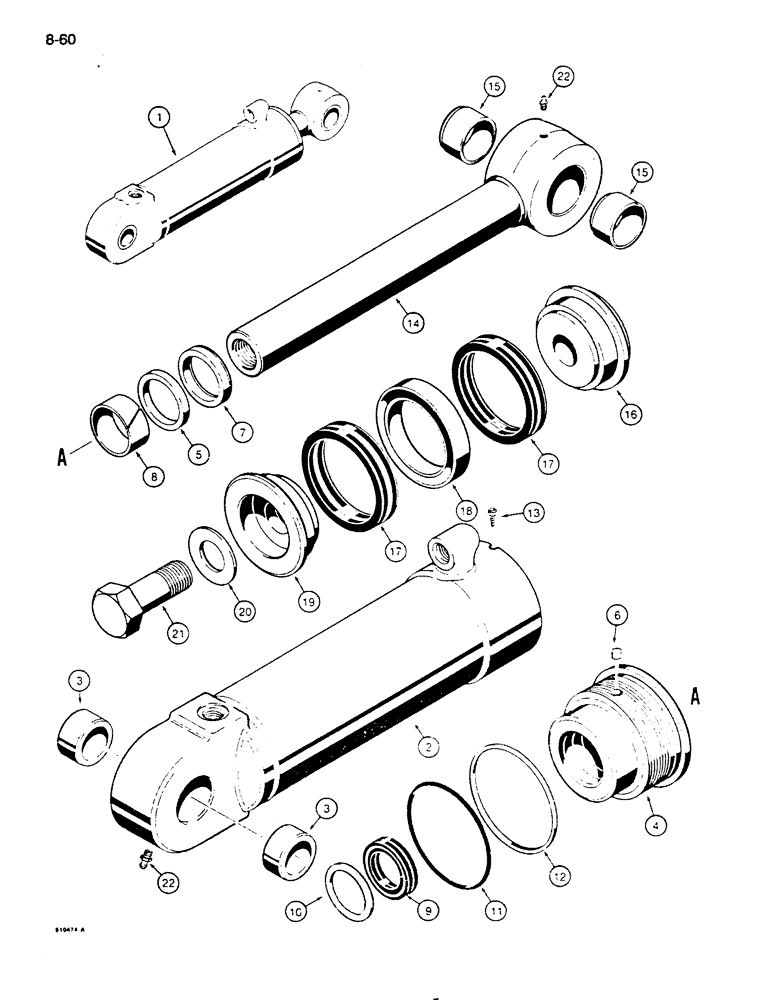

Запчасти Case 855D (8-060) - G103467 DOZER ANGLE CYLINDERS (08) - HYDRAULICS

1

G103467

CYLINDER ASSY.

dozer angle, 4-1/2" (114 mm) ID x 8-5/8" (218 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G103488

TUBE,4.5" DIA x 18.03" L

Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

tube

2шт.

G104316

GLAND

cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder, Includes: Ref. 4 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

6

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of Seal Kit, P/N G109474

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of Seal Kit, P/N G109474

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109474

1шт.

9

G100778

SEAL

U-CUP - piston rod, service option - severe heat or cold

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of Seal Kit, P/N G109474

1шт.

11

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109474

1шт.

12

G32284

BACK-UP RING

gland O-ring

1шт.

Part of Seal Kit, P/N G109474

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

14

G35487

ROD

piston, 2" (51 mm) diameter, Includes: Ref. 15

1шт.

15

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

piston rod

2шт.

16

G33634

PISTON

split, rod end

1шт.

17

D47205

PACKING

cylinder

2шт.

Part of Seal Kit, P/N G109474

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

wear

1шт.

19

D46931

PISTON

split, bolt end

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

hardened

1шт.

21

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G109474

KIT

Includes: Ref. 7, 8, 9, 10, 11, 12, & 17

1шт.
