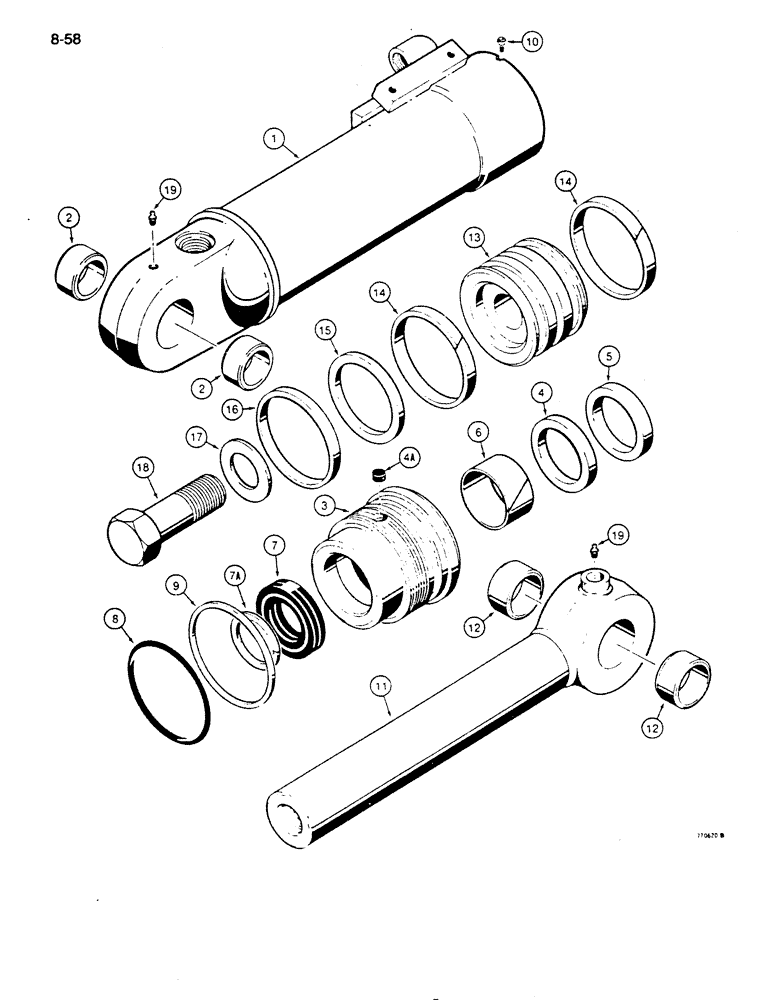

Запчасти Case 855D (8-058) - G109485 DOZER TILT CYLINDER (08) - HYDRAULICS

G109485

CYLINDER ASSY.

dozer tilt, 4" (102 mm) ID x 9-29/32" (252 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

G109486

TUBE,3.995" ID x 4" DIA x 18.86" L

Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

tube

2шт.

G107524

GLAND

cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

4a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G109423

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of seal kit G109423

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP - piston rod, wide, with O-ring

1шт.

Part of seal kit G109423

1шт.

7

G100778

SEAL

U-CUP - piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of seal kit G109423

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland

1шт.

Part of seal kit G109423

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit G109423

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

11

G109488

JACK HEAD

piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

cylinder

1шт.

14

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of seal kit G109423

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

piston seal

1шт.

Part of seal kit G109423

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit G109423

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

hardened

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G109423

GASKET KIT

Includes: Ref. 5, 6, 7, 7A, 8, 9, 14, 15, & 16

1шт.
