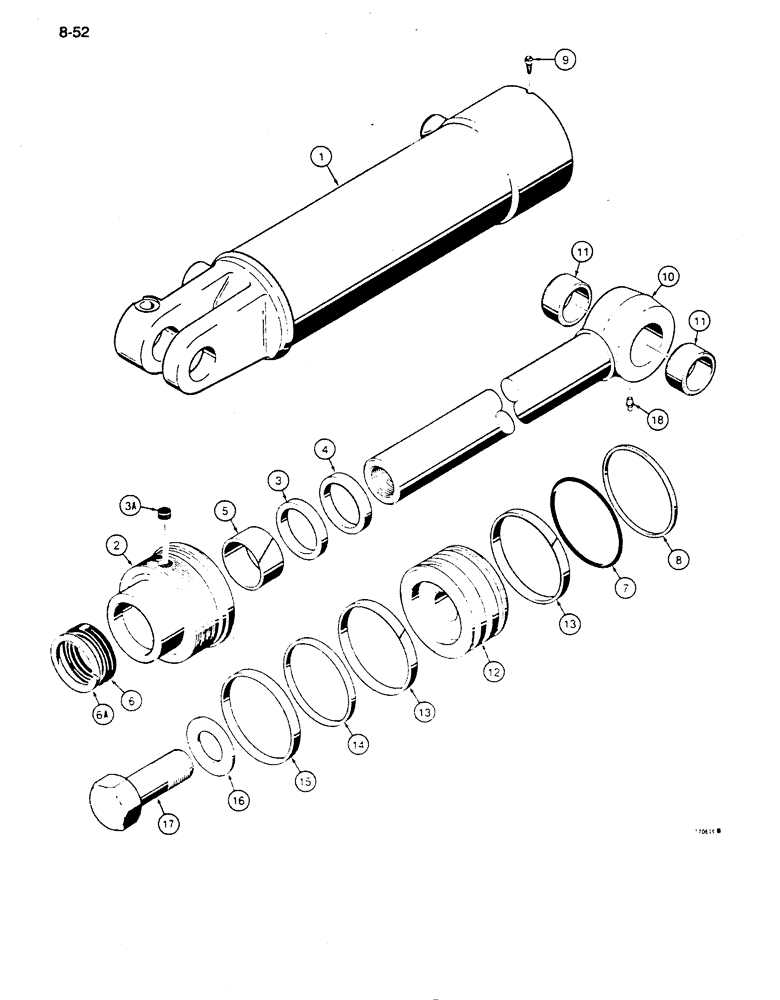

Запчасти Case 855D (8-052) - G101211 LOADER CLAM BUCKET CYLINDERS (08) - HYDRAULICS

G101211

CYLINDER BLOCK

clam, 3-1/2" (89 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 18

1шт.

1

G100614

TUBE,16.46" L

TUBE - cylinder

1шт.

G104402

GLAND

cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

3a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Piston rod

1шт.

Part of Seal Kit, P/N G109453

1шт.

5

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of Seal Kit, P/N G109453

1шт.

6

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109453

1шт.

6

G100778

SEAL

U-CUP - piston rod, service option - severe heat or cold

1шт.

6a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

piston rod, narrow

1шт.

Part of Seal Kit, P/N G109453

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit, P/N G109453

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

gland O-ring

1шт.

Part of Seal Kit, P/N G109453

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

10

G34317

ROD

piston, 2" (51 mm) diameter

1шт.

11

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

piston rod

2шт.

12

G100692

PISTON

cylinder

1шт.

13

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit, P/N G109453

1шт.

14

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

piston seal

1шт.

Part of Seal Kit, P/N G109453

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G109453

1шт.

16

G32351

WASHER

hardened

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G109453

GASKET KIT

Includes: Ref. 4, 5, 6, 6A, 7, 8, 13, 14, & 15

1шт.
