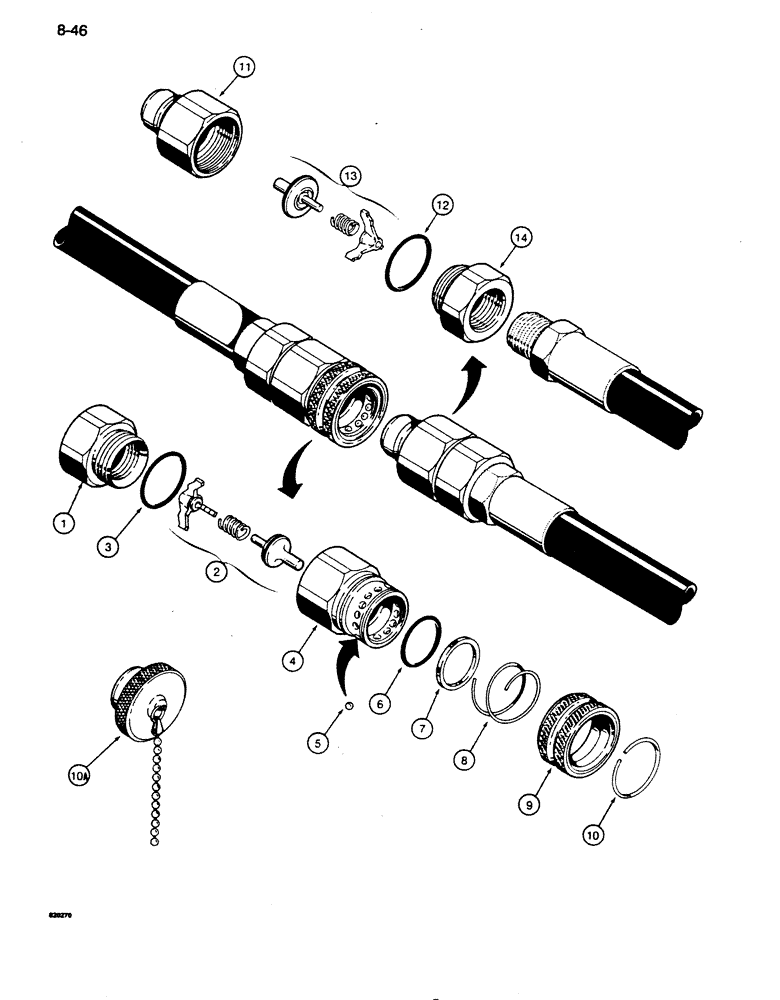

Запчасти Case 855D (8-046) - HYDRAULIC QUICK DISCONNECT COUPLINGS, D52800 FEMALE COUPLING (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

quick disconnect, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

coupling

1шт.

2

D53915

VALVE

coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

adapter

1шт.

4

D53916

BODY

coupling

1шт.

5

211-6

BALL,7/32" Dia

Steel

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

body

1шт.

7

D54276

RING

1шт.

8

D31979

VALVE SPRING

sleeve

1шт.

9

D31980

SLEEVE CYLINDER

ball retaining

1шт.

10

D31981

RING

spring

1шт.

10a

D39924

PLUG

dust, for female coupling

1шт.

D52694

QUICK MALE COUPLING

quick disconnect, male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

coupling, D52694 male

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

body, D52694 male coupling

1шт.

13

D53915

VALVE

coupling, D52694 male

1шт.

14

D31975

FITTING

coupling, D52694 male

1шт.
