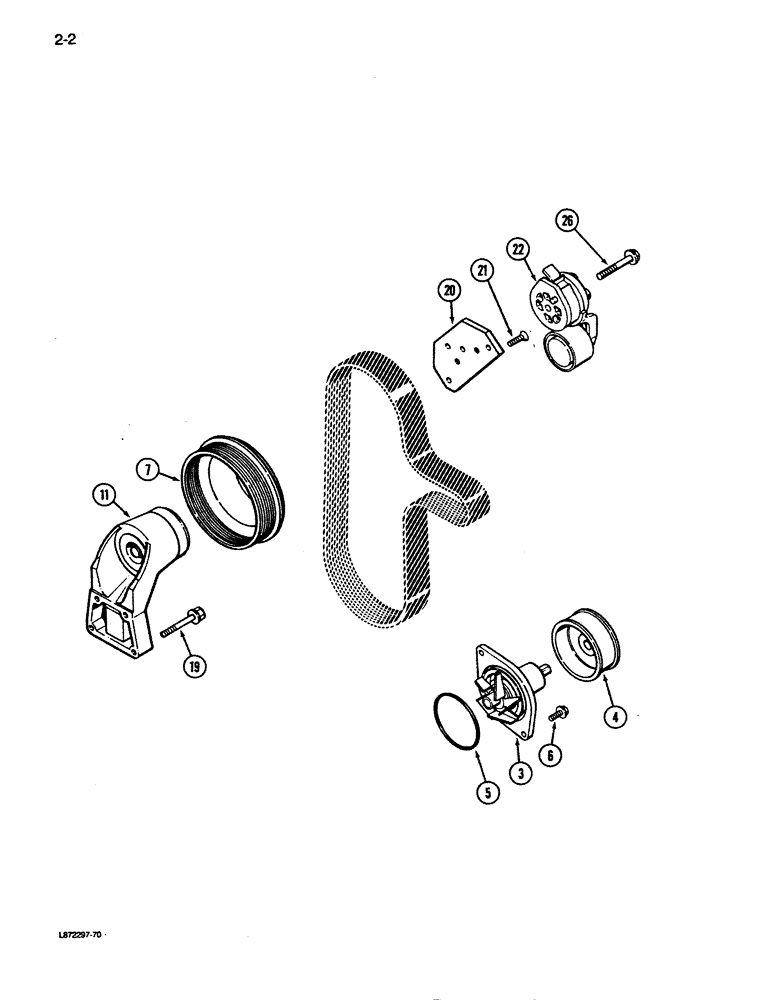

Запчасти Case 855D (2-02) - WATER PUMP SYSTEM, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

850D Long Track, 855D Long Track

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

KIT - (Replaces A77471), Includes: Ref. 3 - 5

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

850D Long Track, 855D Long Track, Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

3

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

4

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77703)

1шт.

5

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

J914462

PULLEY,163mm OD

fan

1шт.

11

J911922

SUPPORT ASSY.

fan pulley

1шт.

19

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

20

J919985

SUPPORT

belt tension (Replaces J904548)

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap

2шт.

22

J914086

BELT TENSIONER

belt

1шт.

26

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.
