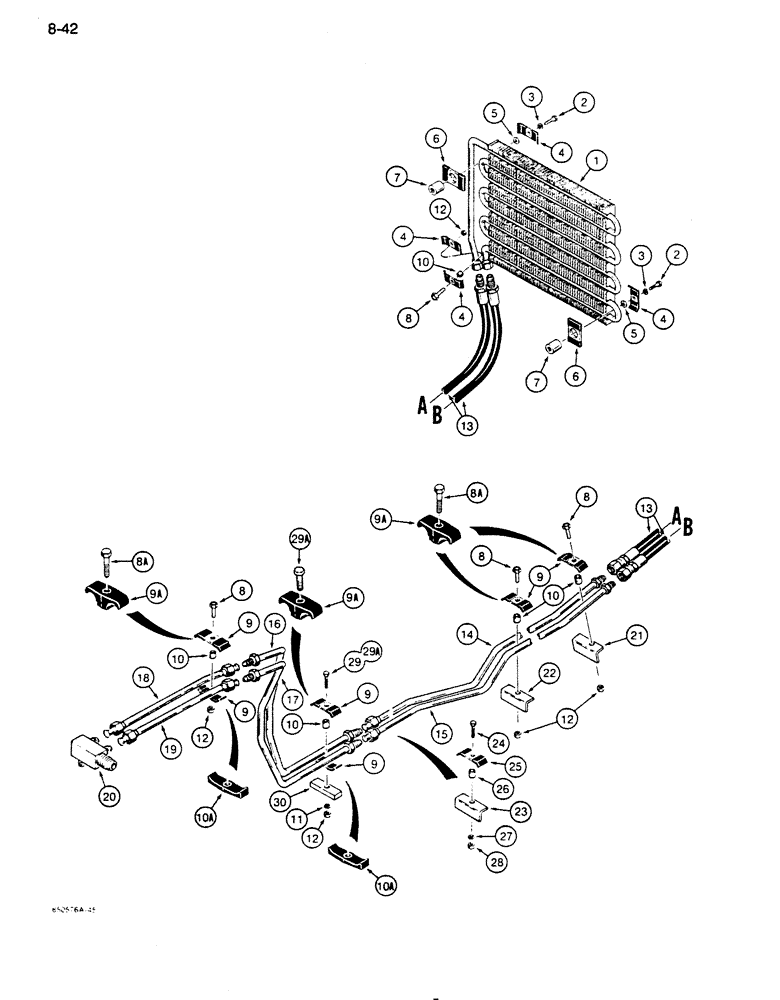

Запчасти Case 855D (8-042) - BACKHOE HYDRAULIC CIRCUIT, COOLING SYSTEM, BOTH HOSE CONNECTIONS ON LEFT END OF COOLER, IF USED (08) - HYDRAULICS

1

R36986

COOLER

oil, backhoe hydraulic circuit, bolts to radiator, no longer available, must be replaced with Ref. 1 - 9 and Ref. 31 on Figure 8-044

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

192-21

LOCK WASHER,3/8"

4шт.

4

D41160

CLAMP

tubes, at oil cooler

6шт.

5

195-525

WASHER,3/8", SAE

Used as shim

1шт.

6

R36989

CLAMP

plastic coated

4шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - tapped, 3/8" - 16 NC, 3/4" OD x 15/16" long, clamp mounting, Serial Range: weld-radiator

4шт.

8

121-238

FLANGE BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

Replaces regular hex head bolt and lock washer used in production on some models, if used

5шт.

8a

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with D 124301 clamp, if used

3шт.

9

R25782

CLAMP

tubes, metal, used with D 76195 spacer, if used

6шт.

9a

D124301

CLAMP,3/4" ID

tubes, plastic, if used

4шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

clamp, used with R 25782 clamp, if used

6шт.

10a

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tubes, plastic, if used

2шт.

11

192-21

LOCK WASHER,3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

5шт.

13

R35321

HOSE

22" (559 mm) long, from oil cooler

2шт.

14

R35175

TUBE,0.75" OD

front, outer

1шт.

15

R35177

TUBE,0.75" OD

front, inner

1шт.

16

R37401

TUBE,0.75" OD

center, outer

1шт.

17

R37399

TUBE,0.75" OD

center, inner

1шт.

18

R50927

TUBE

rear, outer

1шт.

19

R50925

TUBE

rear, inner

1шт.

20

R35237

MANIFOLD

backhoe hydraulic circuit, use only with R36986 oil cooler, Ref. 1 on this figure

1шт.

21

R35297

BRACKET

tube support, front, weld to engine frame

1шт.

22

R35295

BRACKET

tube support, center, weld to engine frame

1шт.

23

R35298

BRACKET

SPARE PART tube support, rear, beside equipment hydraulic pump, welds to engine frame, no longer used, not required

1шт.

24

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used

1шт.

25

R25782

CLAMP

tubes, used with item 23 bracket only, if used

1шт.

26

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

clamp, if used

1шт.

27

192-21

LOCK WASHER,3/8"

If used

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

If used

1шт.

29

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Used with metal clamps, if used

1шт.

29a

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Used with plastic clamps, if used

1шт.

30

R35857

BAR

clamp mounting, under main frame bracket for transmission dual range control lever mounting, if used

1шт.
