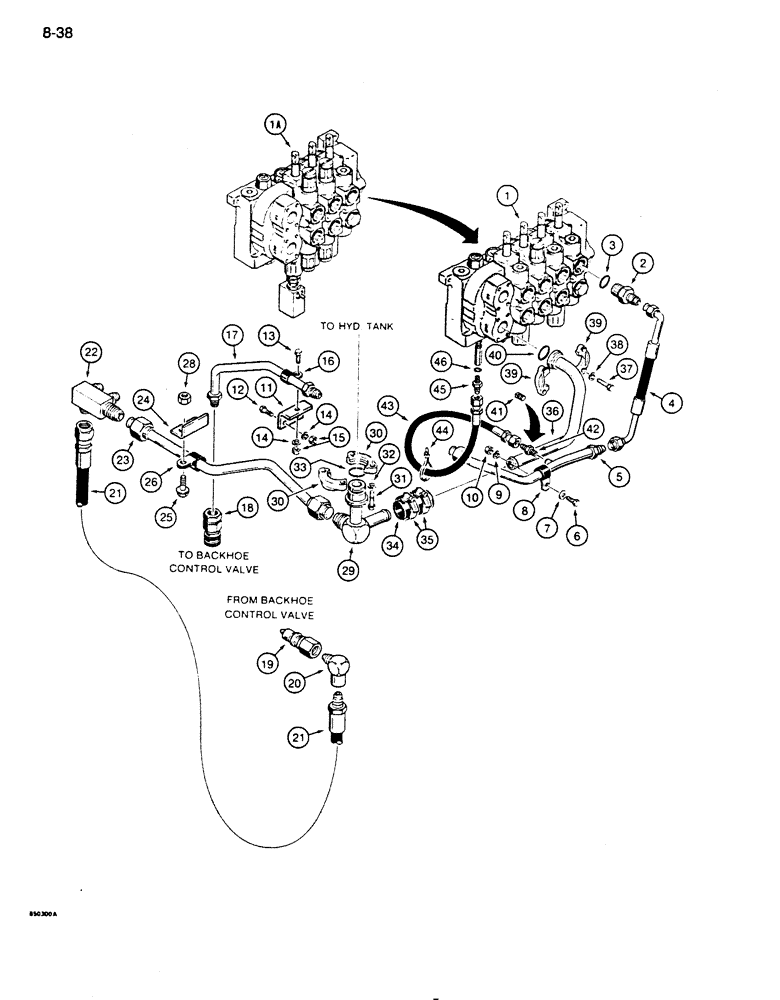

Запчасти Case 855D (8-038) - BACKHOE HYDRAULIC CIRCUIT, CONTROL VALVE TO BACKHOE AND RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, dozer models with backhoe, parts list Figure 8-104

1шт.

1a

REF

INSTRUCTION

CONTROL VALVE - equipment, loader models with backhoe, for correct assembly and components see Figure 8-094 or 8-098

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

4

R36952

HOSE

from control valve backhoe section, A port

1шт.

5

R56930

TUBE

from control valve

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

95-6

WASHER,3/8"

1шт.

8

R14668

CLAMP

tube to seat and tank frame

1шт.

9

192-21

LOCK WASHER,3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

11

R36023

BRACKET

tube support, attaches to seat and tank frame

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Bracket mounting

2шт.

13

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Clamp mounting

1шт.

14

192-21

LOCK WASHER,3/8"

3шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

16

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

tube

1шт.

17

R35169

TUBE,1" OD

backhoe supply, to quick disconnect coupling

1шт.

18

D52800

COUPLING, QUICK, FEM

quick disconnect, female, parts list Figure 8-046

1шт.

19

D52694

QUICK MALE COUPLING

quick disconnect, male, parts list Figure 8-046

1шт.

20

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

21

R36060

HOSE

45" (1143 mm) long, return from backhoe

1шт.

22

REF

INSTRUCTION

MANIFOLD - hydraulic return and cooling lines, for correct manifold part number see Figures 8-042 and 8-044

1шт.

23

R50923

TUBE,1.25" OD

return, manifold to reservoir

1шт.

24

R50985

SUPPORT

tube support, weld to seat and tank frame

1шт.

25

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Replaces regular hex head bolt and lock washer used in production on some models

1шт.

26

84183C1

CLAMP

return tube

1шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

29

R35286

TUBE,1.25" OD x 4.12, 3.99" L

return, to hydraulic reservoir and control valve

1шт.

30

R27612

CLAMP

tee, to hydraulic reservoir

2шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

32

192-23

LOCK WASHER,1/2"

4шт.

33

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

tee

1шт.

34

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

35

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

36

R35206

TUBE,1.25" OD

return, to control valve

1шт.

37

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

38

192-22

LOCK WASHER,7/16"

4шт.

39

A12301

CLAMP,Half

tube, to control valve

2шт.

40

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

tube

1шт.

41

221-1849

PLUG

hex socket head, 1/8" NPT, plated, used on loader models only

1шт.

42

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

straight, used on dozer models only

1шт.

43

D61212

HOSE ASSY.

19" (483 mm) long, to control valve inlet-outlet section, used on dozer models only

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP hose to control valve supply tube (item 5), used on dozer models only

1шт.

45

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Used on dozer models only

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Adapter

1шт.
