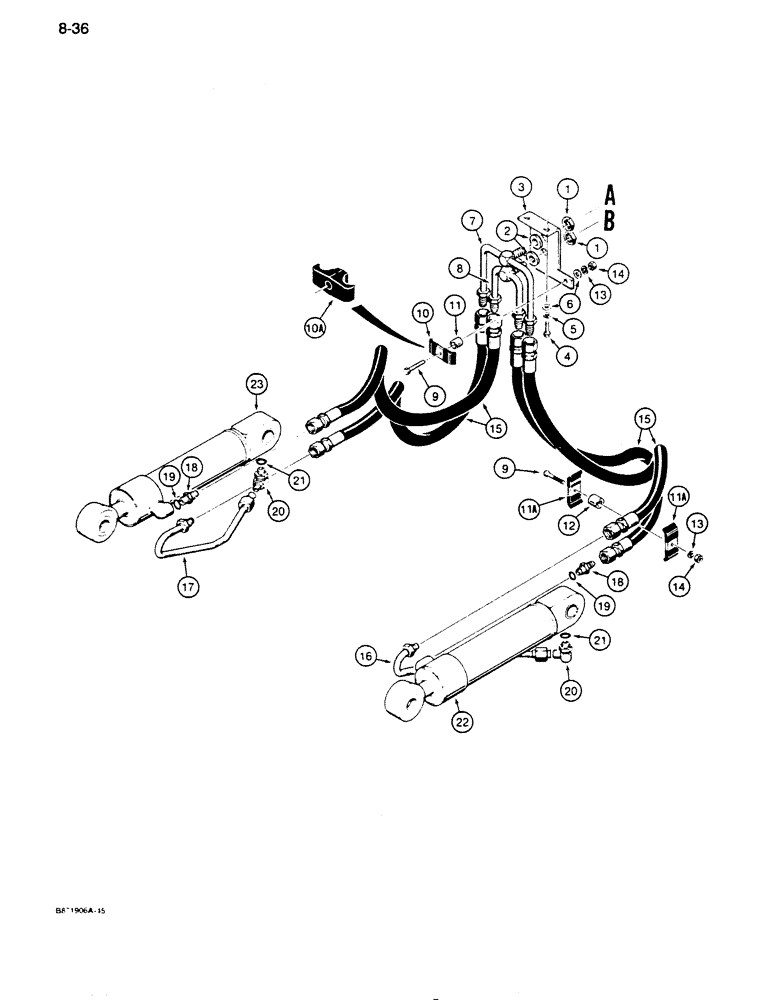

Запчасти Case 855D (8-036) - RIPPER HYDRAULIC CIRCUIT, REAR OF TRACTOR TO CYLINDERS (08) - HYDRAULICS

1

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

2

195-549

WASHER,7/8", SAE

2шт.

3

R35545

BRACKET

tubes, attaches to rear of seat and tank frame

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

2шт.

6

195-525

WASHER,3/8", SAE

2-4шт.

7

R35549

TUBE,0.625" OD x 6.2, 3.75" L

A port, upper

1шт.

8

R46492

TUBE,0.625" OD x 4, 2.1" L

B port, lower, with restrictor fitting

1шт.

9

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

D40236

CLAMP

tubes to bracket, used with D76209 spacer, if used

2шт.

10a

D120613

CLAMP,20mm ID

tubes to bracket, if used

2шт.

11

D76209

SPACER

clamp, 5/8" (16 mm) long, tubes at bracket, used with D40236 clamp (item 10), if used

2шт.

11a

D40236

CLAMP

hoses at cylinders

4шт.

12

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

clamp, 7/8" (22 mm) long, at hoses

2шт.

13

192-21

LOCK WASHER,3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

15

F93300

HOSE

29" (737 mm), Serial Range: long,-cylinders

4шт.

16

R38348

TUBE,0.625" OD

right-hand, to closed end of cylinder

1шт.

17

R38350

TUBE,0.625" OD

left-hand, to closed end of cylinder

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

22

G101214

CYLINDER ASSY.

right-hand, parts list Figure 8-062

1шт.

23

G101215

CYLINDER ASSY.

left-hand, parts list Figure 8-062

1шт.
