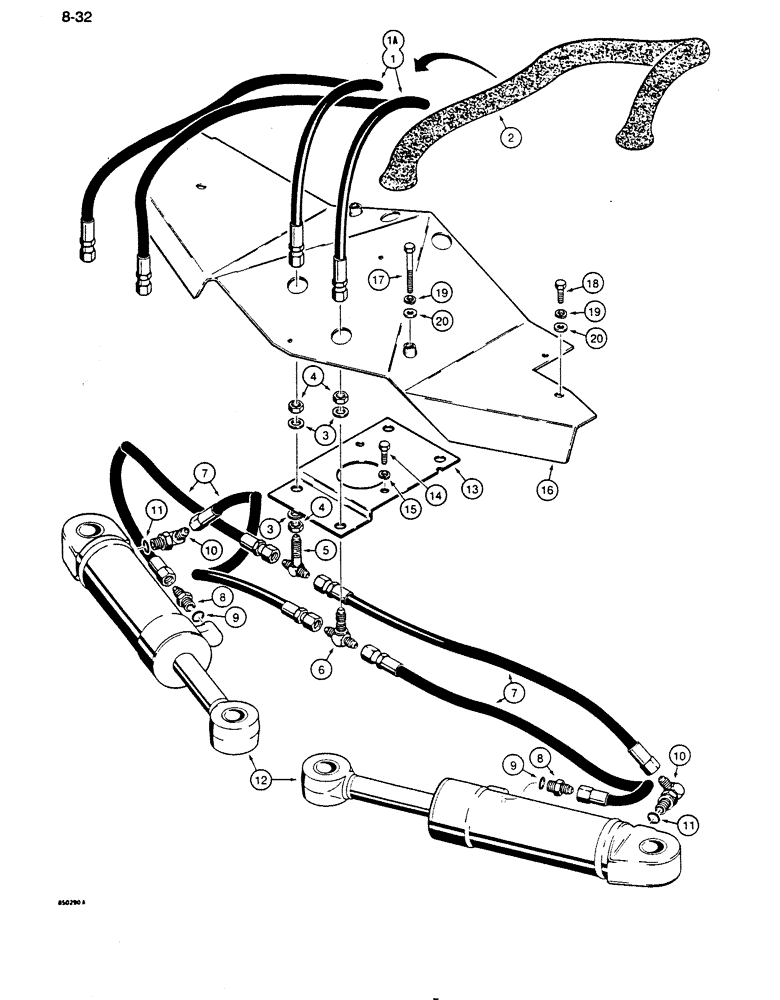

Запчасти Case 855D (8-032) - DOZER ANGLE HYDRAULIC CIRCUIT, GRILLE TO CYLINDERS (08) - HYDRAULICS

1

R34010

HOSE

50" (1270 mm) long, grille to leveling beam, used on all models except LGP extended track models

2шт.

1a

R54751

HOSE

52" (1321 mm) long, grille to leveling beam, used on LGP extended track models only

2шт.

2

R52543

SLEEVE

nylon, holds angle and tilt hoses together

1шт.

3

D35268

SHIM,1/32" Thk

Special

3шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

3шт.

5

R28969

FITTING

bulkhead, left-hand

1шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

RH

1шт.

7

W11468

HOSE

29" (737 mm), Serial Range: long,-cylinders

4шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Straight, Incl. Ref 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, Includes Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

12

G103467

CYLINDER ASSY.

angle, parts list Figure 8-060

2шт.

13

R46374

SUPPORT

hydraulic fittings, at leveling beam

1шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

15

192-23

LOCK WASHER,1/2"

2шт.

16

R46377

GUARD

cylinders and hydraulic lines

1шт.

17

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

18

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

19

192-23

LOCK WASHER,1/2"

4шт.

20

195-533

WASHER,1/2", SAE

4шт.
