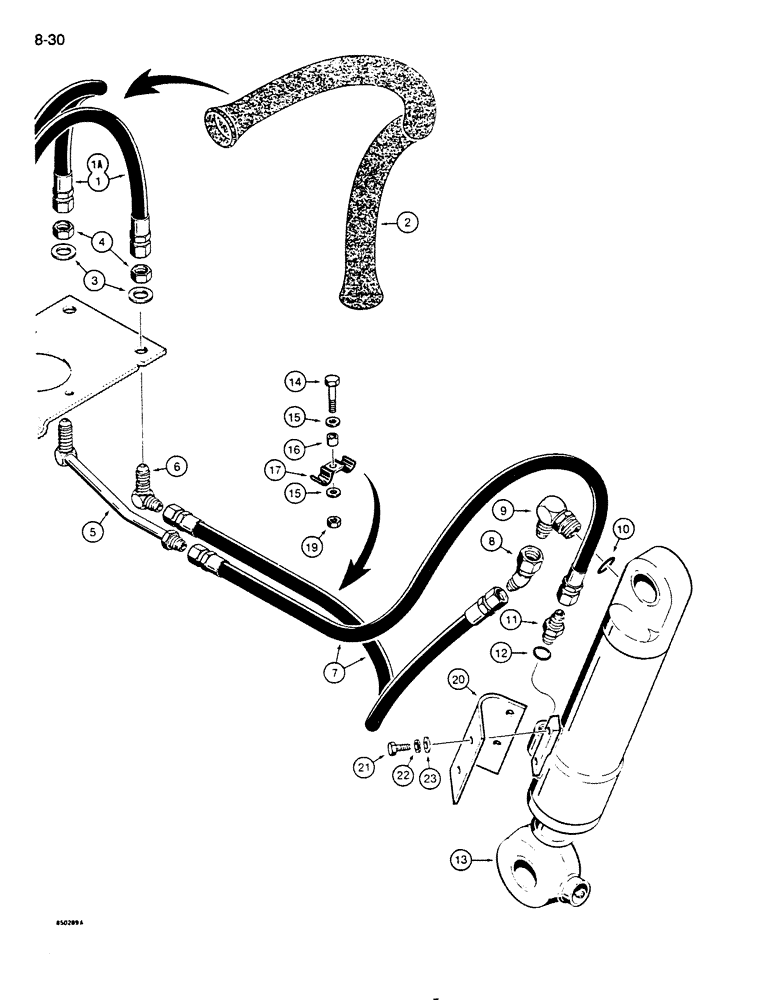

Запчасти Case 855D (8-030) - DOZER TILT HYDRAULIC CIRCUIT, GRILLE TO CYLINDER (08) - HYDRAULICS

1

R34010

HOSE

50" (1270 mm) long, grille to leveling beam, used on all models except LGP extended track models

2шт.

1a

R54751

HOSE

52" (1321 mm) long, grille to leveling beam, used on LGP extended track models only

2шт.

2

R52543

SLEEVE

nylon, holds angle and tilt hoses together

1шт.

3

D35268

SHIM,1/32" Thk

2шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

5

R42439

TUBE,0.5" OD x 10.5, 0.9" L

to rod end of tilt cylinder

1шт.

6

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

7

R42829

HOSE

33" (838 mm) long, to tilt cylinder

2шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, Includes Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter - straight, Incl. Ref 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

13

REF

INSTRUCTION

CYLINDER, tilt, for correct assembly and components see Figure 8-056 and 8-058

1шт.

14

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

15

195-525

WASHER,3/8", SAE

2шт.

16

D76209

SPACER

clamp

1шт.

17

R15257

CLAMP

hoses

1шт.

19

131-666

LOCK NUT,3/8"-16, GB

Replaces lock washer and regular hex nut used in production on some models

1шт.

20

R31935

GUARD

tilt cylinder

1шт.

21

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

4шт.

23

95-6

WASHER,3/8"

4шт.
