Запчасти Case 855D (8-026) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS

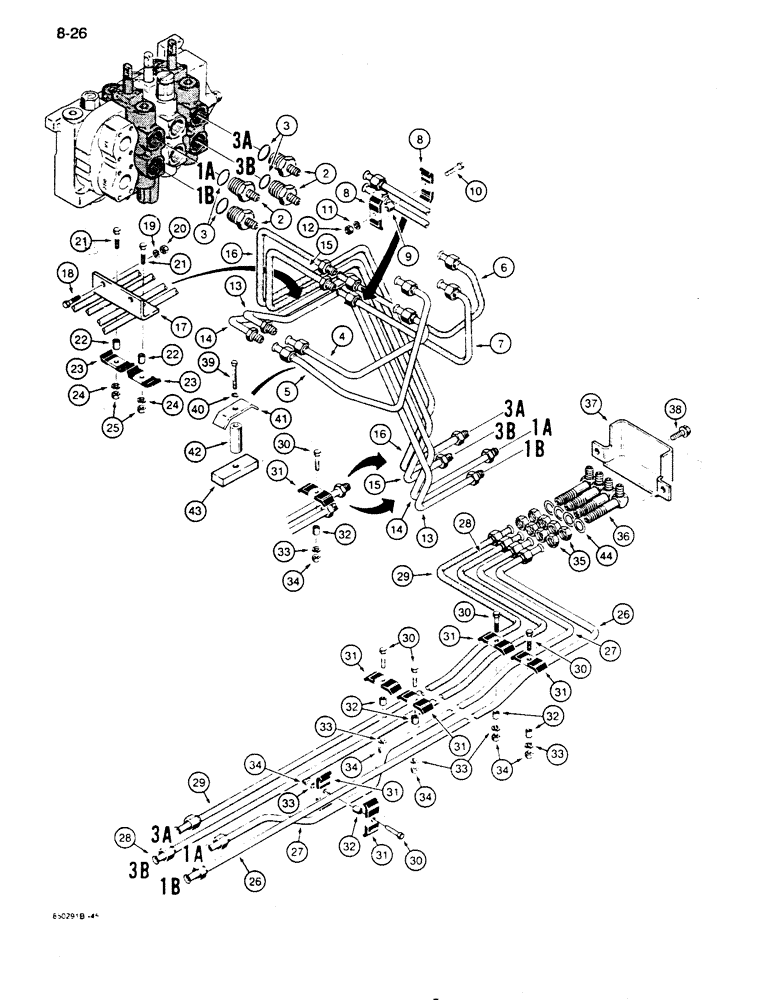

Схема запчастей Case 855D - (8-026) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS
35
33
2
34
33
25
42
21
30
10
21
16
19
15
20
2
14
32
23
23
5
31
27
33
8
18
34
3
32
30
15
34
8
22
34
26
4
34
36
7
32
3
30
28
11
33
39
29
9
44
31
6
16
30
12
43
40
13
31
26
32
33
24
24
30
13
31
17
22
38
41
29
31
37
31
14
31
27
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figures 8-100 through 8-106

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

straight, Includes: Ref. 3

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adpater

1шт.

4

R34828

TUBE,12.7 mm OD x 395, 192 mm L

B port, tilt circuit

1шт.

5

R46691

TUBE,12.7 mm OD

A port, tilt circuit

1шт.

6

R34834

TUBE,0.5" OD

A port, angle circuit

1шт.

7

R34832

TUBE,0.5" OD

B port, angle circuit

1шт.

8

D40236

CLAMP

angle tubes

2шт.

9

D76208

SPACER

angle tubes

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Also holds lift tube clamps)

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

R34836

TUBE,0.5" OD

B port, tilt circuit

1шт.

14

R34838

TUBE,0.5" OD

A port, tilt circuit

1шт.

15

R34840

TUBE,0.5" OD

B port, angle circuit

1шт.

16

R34842

TUBE,0.5" OD

A port, angle circuit

1шт.

17

R35272

SUPPORT

tubes

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket mounting

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex head, 3/8" - 16 NC x 1-1/2", plated, Clamp mounting

2шт.

22

D76208

SPACER

clamp

2шт.

23

R25528

CLAMP

tubes

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

R34844

TUBE,0.5" OD

B port, tilt circuit

1шт.

27

R34850

TUBE,0.5" OD

A port, tilt circuit

1шт.

28

R34846

TUBE,0.5" OD

B port, angle circuit

1шт.

29

R34848

TUBE,0.5" OD

A port, angle circuit

1шт.

30

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

7шт.

31

R25528

CLAMP

tubes

7шт.

32

D76208

SPACER

clamps

7шт.

33

492-11038

LOCK WASHER,3/8"

7шт.

34

425-106

NUT,3/8"-16, Cl 5

7шт.

35

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4-8шт.

36

R29758

FITTING

90 degree, bulkhead, was R33311

4шт.

37

R34008

GUARD

bulkheads

1шт.

38

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Replaces regular hex head bolt, lock washer and flat washer used in production on some models

2шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

40

492-11038

LOCK WASHER,3/8"

1шт.

41

D40236

CLAMP

tubes

1шт.

42

D76208

SPACER

clamps

1шт.

43

A19305

SPACER

tube, if used

1шт.

44

D35268

SHIM,1/32" Thk

Special, if used

4шт.
