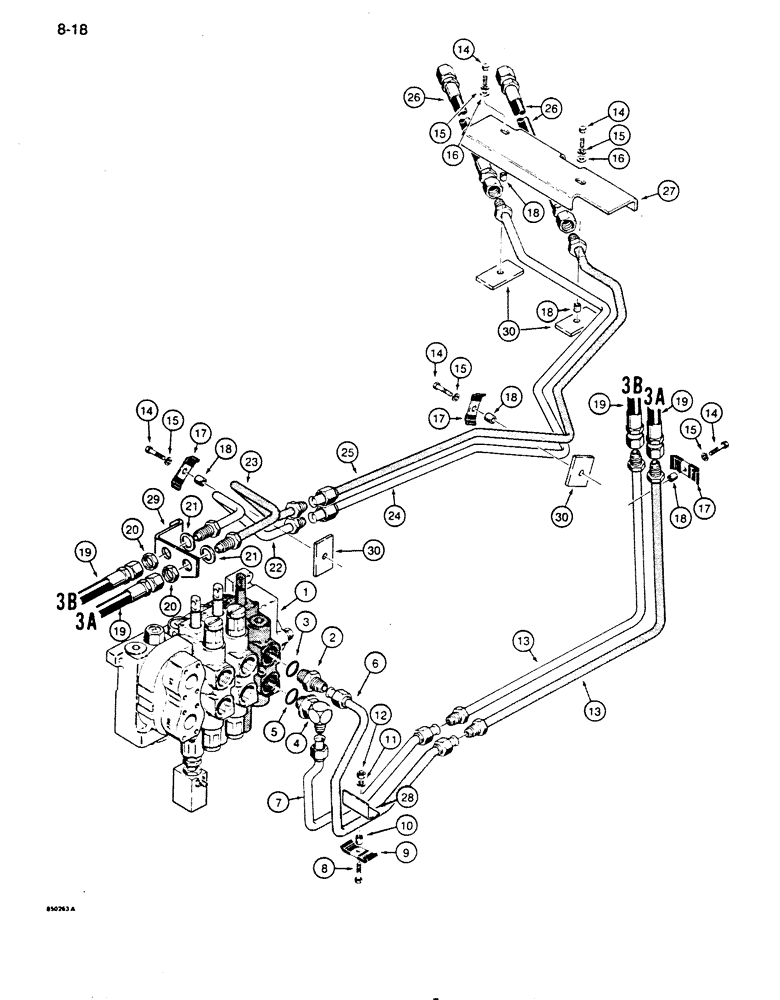

Запчасти Case 855D (8-018) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figures 8-092 and 8-106

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

A port

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, B port, Includes Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

6

R35575

TUBE,0.75" OD

at control valve, upper, A port

1шт.

7

R35577

TUBE,0.75" OD

at control valve, lower, B port

1шт.

8

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

D40236

CLAMP

tubes

1шт.

10

R29844

SPACER,3/8" Pipe x 11/16"

clamp

1шт.

11

192-21

LOCK WASHER,3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

13

R35579

TUBE,0.75" OD x 18.19, 15.19" L

at loader frame upright

2шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

15

192-21

LOCK WASHER,3/8"

5шт.

16

195-525

WASHER,3/8", SAE

2шт.

17

D40236

CLAMP

tubes

3шт.

18

R29844

SPACER,3/8" Pipe x 11/16"

clamp

5шт.

19

R35582

HOSE

44" (1118 mm) long

2шт.

20

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

21

B18145

WASHER

flat

2шт.

22

R35588

PIPE,0.75" OD

lower and inner, B port

1шт.

23

R35590

TUBE,0.75" OD

upper and outer, A port

1шт.

24

R35584

TUBE,0.75" OD

lower, B port

1шт.

25

R35586

TUBE,0.75" OD x 38.79, 8.09" L

upper, A port

1шт.

26

R35428

HOSE

50" (1270 mm) long

2шт.

27

R35573

GUARD

hydraulic lines

1шт.

28

R27733

BRACKET

clamp mounting, weld to seat and tank frame

1шт.

29

R35583

SUPPORT

tube support, weld to loader lift frame

1шт.

30

D51930

BLOCK

tapped, clamp retaining, weld to loader lift frame

4шт.
