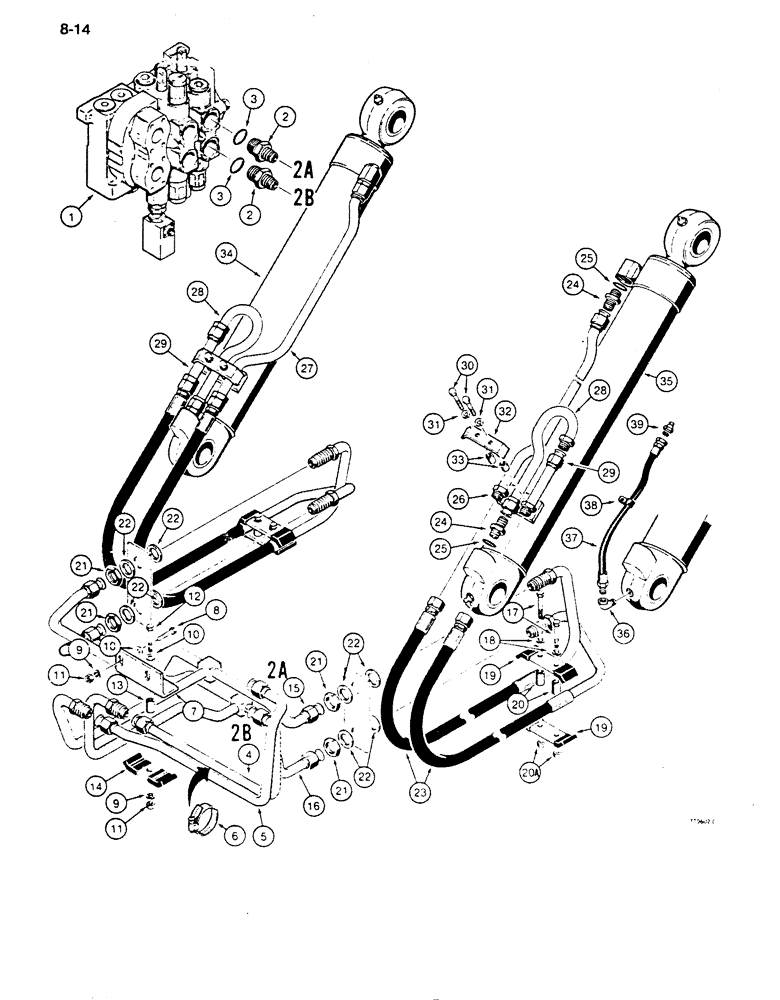

Запчасти Case 855D (8-014) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - for correct assembly and components see Figures 8-092 through 8-106
1шт.
2
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Straight, Incl. Ref. 3
2шт.
4
R34926
TUBE,1" OD
port 2B, lower
1шт.
5
R41900
TUBE,1" OD
port 2A, upper
1шт.
6
214-259
HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm
adjustable, tubes
1шт.
7
R34988
BRACKET
tubes
1шт.
8
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
9
192-21
LOCK WASHER,3/8"
3шт.
10
195-525
WASHER,3/8", SAE
3шт.
11
129-103
NUT,Hex, 3/8" - 16, Gr 5
3шт.
12
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
13
R29845
BUSHING
clamp
1шт.
14
R25782
CLAMP
tubes
1шт.
15
R34922
TUBE
upper
1шт.
16
R34923
TUBE
lower
1шт.
17
113-248
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
4шт.
18
192-21
LOCK WASHER,3/8"
4шт.
19
R37925
CLAMP
tubes
4шт.
20
R29845
BUSHING
clamps
4шт.
20a
129-103
NUT,Hex, 3/8" - 16, Gr 5
4шт.
21
218-1256
BHD LOCK NUT,Blkhd, 1 1/16"-12
4шт.
22
B18145
WASHER
special
8шт.
23
R36589
HOSE
to lift cylinders
4шт.
24
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Straight, Incl. Ref. 25
4шт.
25
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Adapter
1шт.
26
R37870
TUBE,0.75" OD x 30, 1.12" L
right-hand, rod end
1шт.
27
R37872
TUBE,0.75" OD x 30, 1.12" L
left-hand, rod end
1шт.
28
R33026
TUBE
curved, closed end
2шт.
29
R33273
TUBE ASSY.,0.75" OD x 7.25" L
straight, closed end
2шт.
30
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
31
192-21
LOCK WASHER,3/8"
4шт.
32
R27400
CLAMP
cylinder tubes
2шт.
33
R29844
SPACER,3/8" Pipe x 11/16"
clamp
4шт.
34
G101213
CYLINDER ASSY.
left-hand, parts list Figure 8-048
1шт.
35
G101212
CYLINDER ASSY.
right-hand, parts list Figure 8-048
1шт.
36
221-411
ELBOW,90 Degree, 1/8"-27, NPT
2шт.
37
R44324
HOSE
15" (381 mm) long
2шт.
38
NLS
NO LONGER SERVICED
hose
2шт.
39
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
Выбрано товаров: 40
