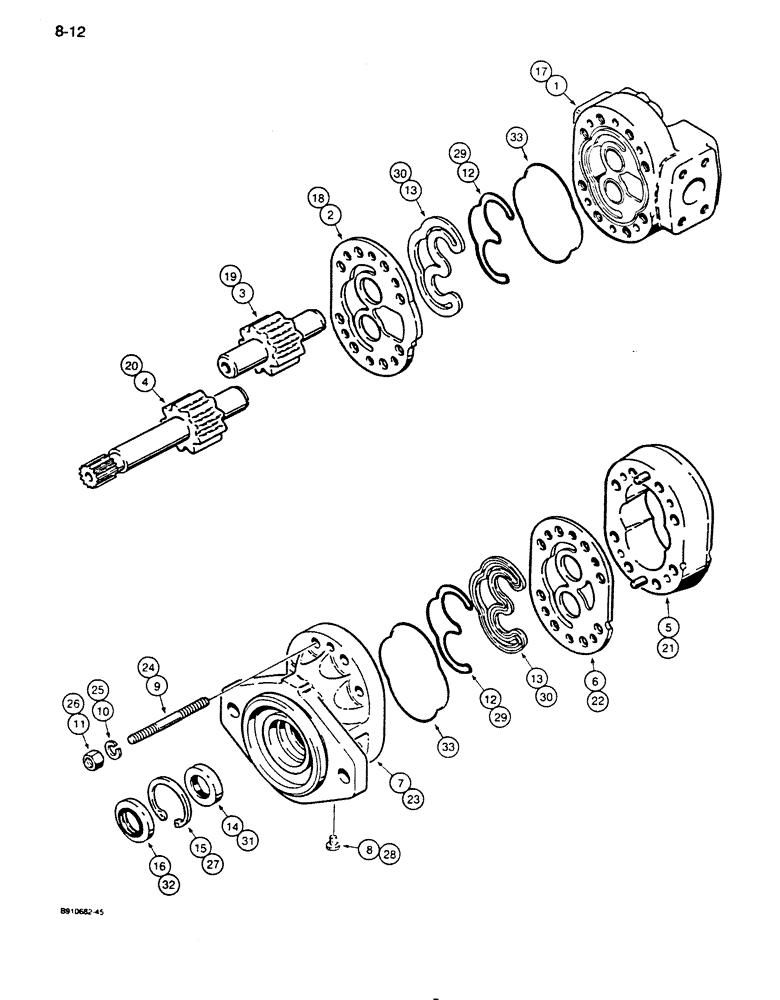

Запчасти Case 855D (8-012) - VICKERS EQUIPMENT PUMPS - R54149 & R56559 (08) - HYDRAULICS

R54149

PUMP

equipment, Vickers, if used, part number stamped on port end cover, item 1, order R56559 pump below

1шт.

R56559R

REMAN-HYD PUMP

850D, 855D, Both CASE LONG TRACK CRAWLER TRACTOR, Reman for New PN R54149

1шт.

R56559C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER -port end, Vickers equipment pump - R54149

1шт.

2

N60296

PLATE

port end, Vickers equipment pump - R54149

1шт.

3

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump, Vickers equipment pump - R54149

1шт.

4

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump, Vickers equipment pump - R54149

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - gear, Vickers equipment pump - R54149

1шт.

6

N60292

PLATE

drive shaft end, Vickers equipment pump - R54149

1шт.

7

N9824

COVER ASSY

drive shaft end, Vickers equipment pump - R54149

1шт.

8

N60210

PLUG

cover, drive shaft end, Vickers equipment pump - R54149

1шт.

9

N60211

STUD

4-1/2" (114 mm) long, Vickers equipment pump - R54149

8шт.

10

492-11044

LOCK WASHER,7/16"

Vickers equipment pump - R54149

8шт.

11

425-107

NUT,7/16"-14, G5

Vickers equipment pump - R54149

8шт.

N7126

SEAL KIT

pump seal, Vickers equipment pump - R54149, Includes: Ref. 12 - 16

1шт.

12

N60243

SEAL

wear plate, Vickers equipment pump - R54149

2шт.

13

N60305

RETAINER

seal, Vickers equipment pump - R54149

2шт.

14

N60306

SEAL

drive gear shaft, inner, Vickers equipment pump - R54149

1шт.

15

A49490

CIRCLIP

seal, Vickers equipment pump - R54149

1шт.

16

N9020

SEAL

drive gear shaft, outer, Vickers equipment pump - R54149

1шт.

R56559

PUMP

equipment, Vickers, if used, part number stamped on port end cover, Ref. 17

1шт.

R56559R

REMAN-HYD PUMP

850D, 855D, Both CASE LONG TRACK CRAWLER TRACTOR

1шт.

R56559C

CORE-HYDRAULIC PUMP

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - port end, Vickers equipment pump - R56559

1шт.

18

D143154

LARGE PLATE

PLATE, LARGE WEAR PLATE - port end, Vickers equipment pump - R56559

1шт.

19

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - Vickers equipment pump - R56559

1шт.

20

NSS

NOT SOLD SEPARAT

DRIVE GEAR - Vickers equipment pump - R56559

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - gear, Vickers equipment pump - R56559

1шт.

22

D143154

LARGE PLATE

PLATE, LARGE drive shaft end, Vickers equipment pump - R56559

1шт.

23

S300233

COVER

drive shaft end, Vickers equipment pump - R56559

1шт.

24

N60211

STUD

4-1/2" (114 mm) long, Vickers equipment pump - R56559

8шт.

25

492-11044

LOCK WASHER,7/16"

Vickers equipment pump - R56559

8шт.

26

425-107

NUT,7/16"-14, G5

Vickers equipment pump - R56559

8шт.

27

A49490

CIRCLIP

retaining, seal, Vickers equipment pump - R56559

1шт.

50-3306T1

SEAL KIT

pump seal, Vickers equipment pump - R56559, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - cover, drive shaft end, Vickers equipment pump - R56559

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - wear plate, Vickers equipment pump - R56559

2шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - seal, Vickers equipment pump - R56559

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL - drive gear shaft, inner, Vickers equipment pump - R56559

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - drive gear shaft, outer, Vickers equipment pump - R56559

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - end cover seal, Vickers equipment pump - R56559

2шт.
