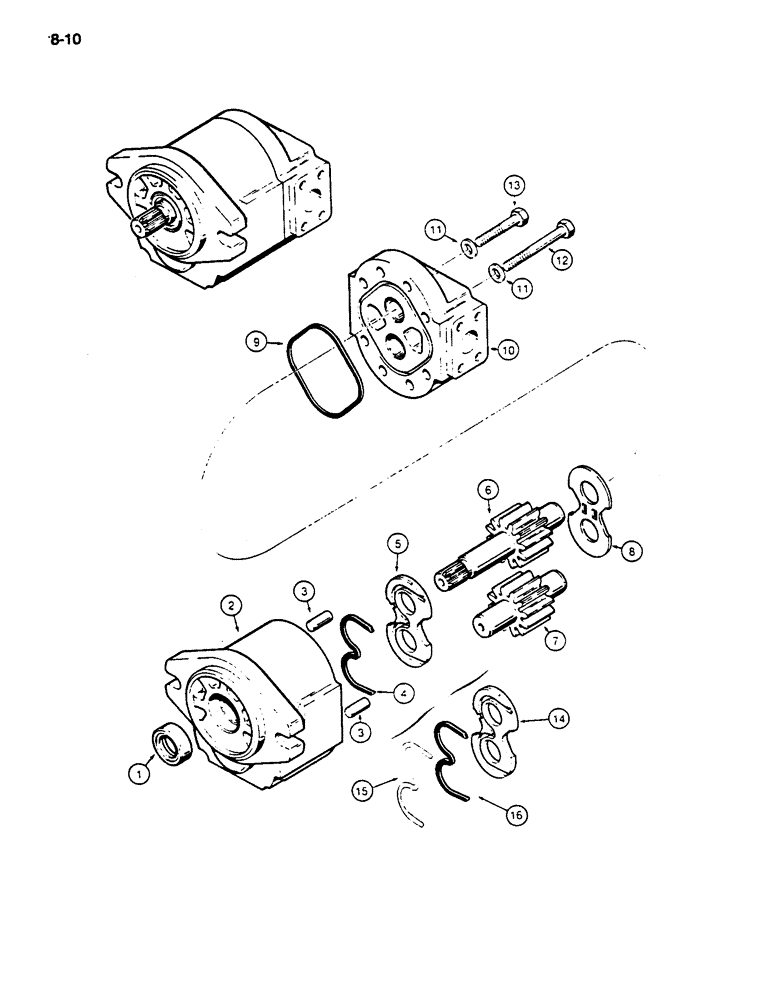

Запчасти Case 855D (8-010) - WARNER EQUIPMENT PUMP - R37951 (08) - HYDRAULICS

R37951

PUMP

equipment, Warner, assembly no longer available, replace with R56559 equipment pump assembly on Figure 8-012, Includes: Ref. 1 - 16

1шт.

1

D73624

SEAL

drive gear shaft

1шт.

2

D78412

HOUSING

SPARE PART drive shaft end

1шт.

3

D58188

PIN

dowel

2шт.

4

D73620

SEAL

wear plate, one-piece, used with tin wear plate (Ref. 5) only, no longer available, order Ref. 14 - 16

1шт.

5

D73619

PLATE

wear, tin, used with one-piece oil seal (item 4), no longer available, order Ref. 14 - 16

1шт.

6

D78413

GEAR

pump

1шт.

7

D78414

GEAR

pump

1шт.

8

D73623

PLATE

thrust

1шт.

9

D78415

SEAL

square section, cover, port end

1шт.

10

D78411

COVER

port end

1шт.

11

D74441

WASHER

special

8шт.

12

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

4шт.

13

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

14

N9773

PLATE

wear, bronze, used with two seals (items 15 and 16)

1шт.

15

N9772

SEAL

flat, bronze wear plate

1шт.

16

N9771

SEAL

grooved, bronze wear plate

1шт.
