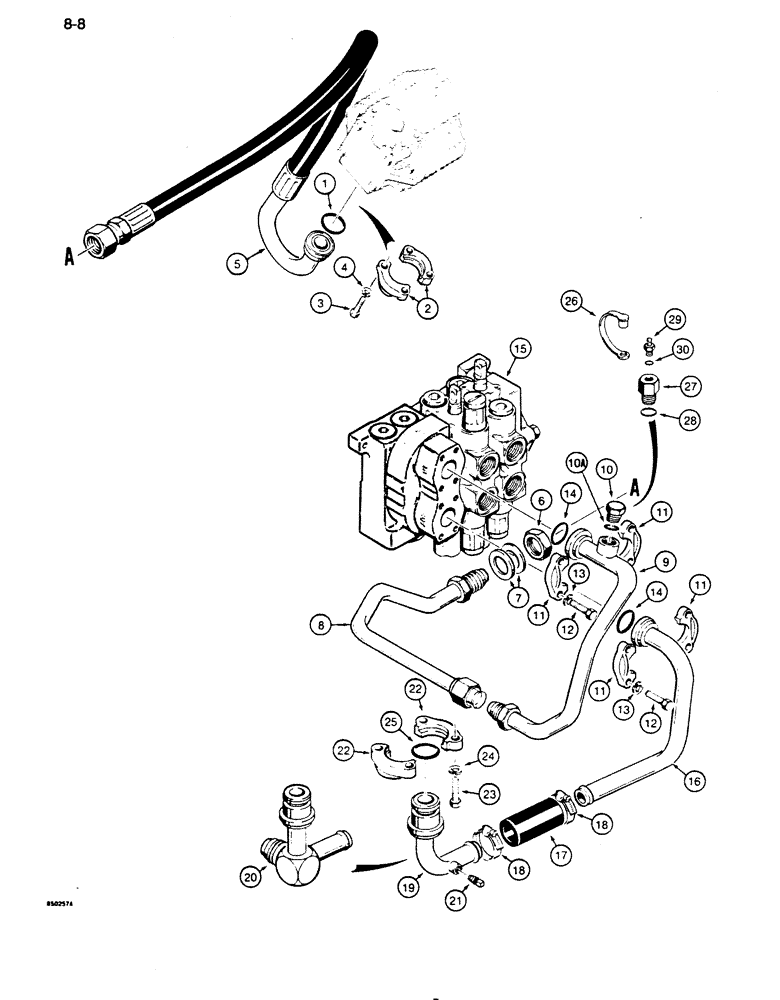

Запчасти Case 855D (8-008) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR (08) - HYDRAULICS

1

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

pump, outlet side

1шт.

2

A12306

FLANGE

split

2шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

4шт.

5

R38048

HOSE

pump to control valve

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

1шт.

7

95-81142

WASHER,1 3/8" x 2" x .065"

flat, 1-5/16"

2шт.

8

R34910

TUBE,1" OD

to control valve, intermediate

1шт.

9

R51936

TUBE,1" OD

at control valve

1шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

If used, Includes: Ref. 10A

1шт.

10a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

11

A12301

CLAMP,Half

split flange

4шт.

12

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

8шт.

13

192-22

LOCK WASHER,7/16"

8шт.

14

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

tubes, at control valve

2шт.

15

REF

INSTRUCTION

CONTROL VALVE - equipment, for correct assembly and components see Figures 8-090 through 8-106

1шт.

16

R35206

TUBE,1.25" OD

from control valve to hydraulic reservoir

1шт.

17

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

18

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

19

R33400

TUBE,1.25" OD x 4.2, 3.64" L

to hydraulic reservoir, models without backhoe, if used

1шт.

20

R35286

TUBE,1.25" OD x 4.12, 3.99" L

manifold, to hydraulic reservoir, models with backhoe, if used

1шт.

21

221-1849

PLUG

hex socket head, 1/8" NPT, plated

1шт.

22

R27612

CLAMP

split flange

2шт.

23

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

24

192-23

LOCK WASHER,1/2"

4шт.

25

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

tube, at hydraulic reservoir

1шт.

26

H434163

DUST CAP

Diagnostic adapter, if used

1шт.

27

218-5316

ADAPTER

straight, 1-1/16-12 inch male x 7/16-20 inch female, if used

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

R55912

NIPPLE

diagnostic test point, if used

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
