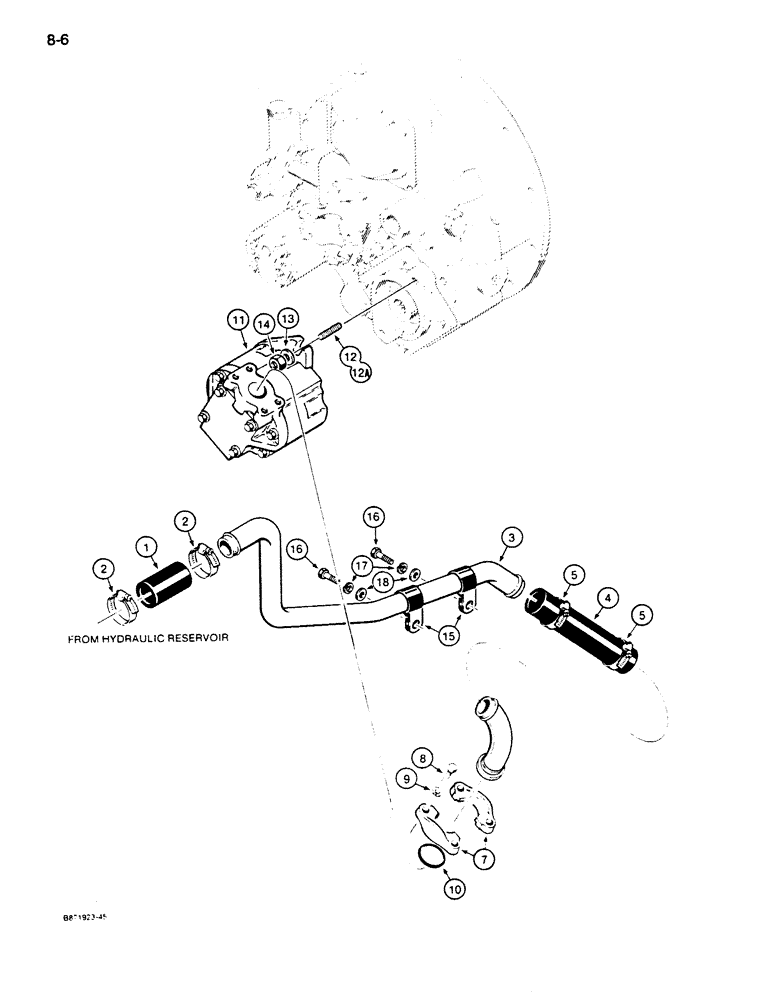

Запчасти Case 855D (8-006) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

R43916

HOSE

1-1/2" (38 mm) ID x 3" (76 mm) long, at hydraulic reservoir

1шт.

2

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

Adjustable

2шт.

3

R56439

TUBE,1.5" OD

from hydraulic reservoir

1шт.

4

R45924

HOSE

, Serial Range: HOSE-pump

1шт.

5

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

Adjustable

2шт.

6

R45926

PIPE,1.5" OD x 4.6, 1.05" L

to pump

1шт.

7

A12301

CLAMP,Half

split flange

2шт.

8

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

9

192-22

LOCK WASHER,7/16"

4шт.

10

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

pump, inlet side

1шт.

11

R37951

PUMP

equipment, Warner, if used, parts list Figure 8-010

1шт.

11

REF

INSTRUCTION

PUMP ASSEMBLY - equipment, Vickers, if used, not shown, see Figure 8-012 for correct assembly and components

1шт.

12

R24322

STUD

pump mounting, 1/2" - 13 NC x 2-3/8", used with R37951 Warner equipment pump, if used

2шт.

12a

R46073

STUD

pump mounting, 1/2" - 13 NC x 2", used with R54149 Vickers equipment pump, if used

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, 1/2", hardened

2шт.

14

131-1116

LOCK NUT,1/2"-13, GB

2шт.

15

R11860

CLAMP

tube from hydraulic reservoir

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

2шт.

18

195-525

WASHER,3/8", SAE

2шт.
