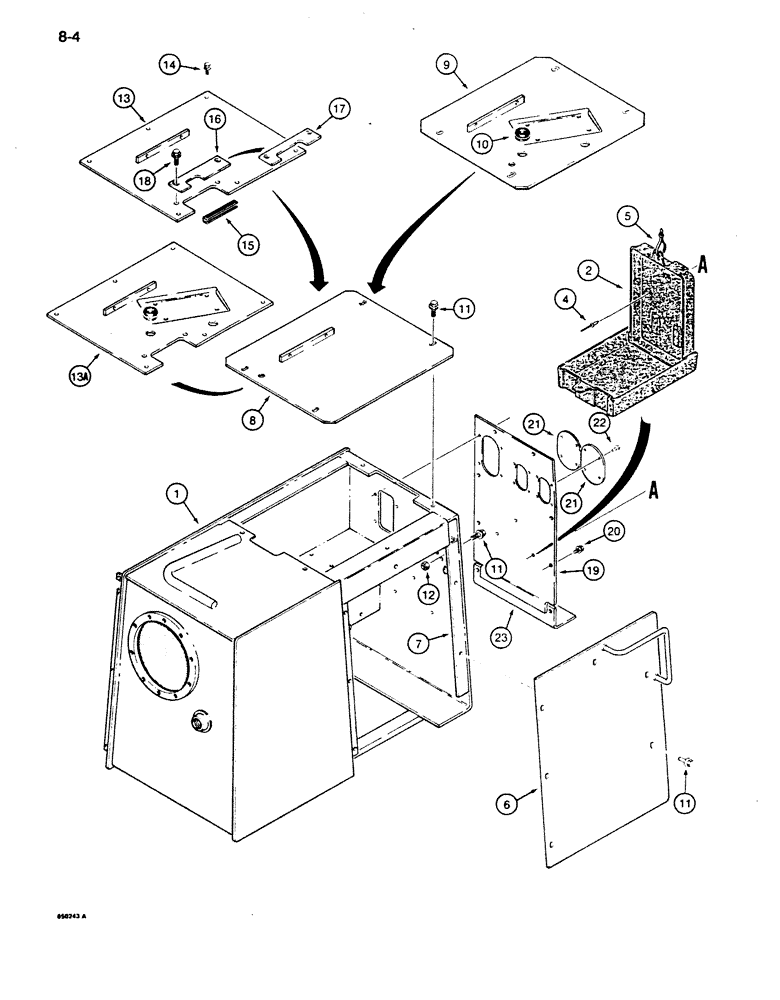

Запчасти Case 855D (8-004) - HYDRAULIC RESERVOIR COVERS AND OPERATORS MANUAL BOX (08) - HYDRAULICS

1

REF

INSTRUCTION

see Figure 8-002 for part number and other related parts

1шт.

2

R46464

CASE

operators manual

1шт.

4

151-522

RIVET,Pop, 3/16" x .575"

3шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

6

R42561

LARGE PLATE

PLATE, LARGE outer side, with handrail

1шт.

7

R42559

BRACKET

side cover mounting

1шт.

8

R51899

COVER

top, includes decals, used on models without a winch or cab, if used

1шт.

9

R51900

COVER

top, includes decals, used on models with a winch, if used

1шт.

10

49562

GROMMET,11/16" ID x 1" Groove Dia

cover, winch cables, if used

2шт.

11

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

13шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

13

R54526

LARGE PLATE

PLATE, LARGE top, includes decals, used on models with a cab, if used

1шт.

13a

R54527

COVER

top, includes decals, used on models with a winch and cab, if used

1шт.

14

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Used on models with cab only

6шт.

15

REF

INSTRUCTION

TRIM - hose protection, adheres to cab frame weldment, 4-1/4" (108 mm) long, cut from F42827, see below, used on models with cab only

1шт.

16

R49865

LARGE PLATE

PLATE, LARGE hose guide, cab models with heating system only, if used

1шт.

17

R49866

GUIDE

hose guide, cab models with heating and air conditioning, if used

1шт.

18

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

Used on models with cab only

2шт.

19

R51264

COVER

front, control levers, used on cab models only

1шт.

20

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Used on models with cab only

10шт.

21

R47916

LARGE PLATE

PLATE, LARGE cover, used on cab models without a secondary control lever, if used

1-2шт.

22

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Black, used on models with cab only

4-8шт.

23

CASR52064

ANGLE

lower, front cover retaining, used on cab models only

1шт.

F42827

TRIM,2946.4mm L

edge, 116" (2946 mm) long, used on models with cab only

1шт.
