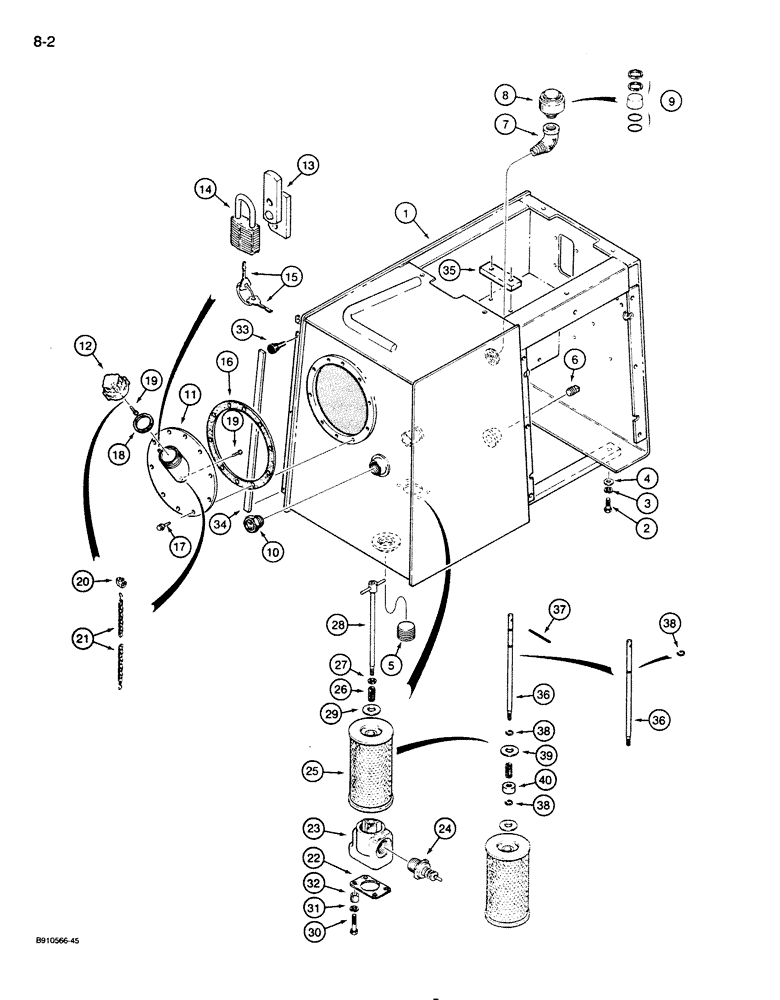

Запчасти Case 855D (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

R48896

TANK, HYDRAULIC OIL

Includes: manual box (Figure 8-004) and various decals (Figures 9-106 and 9-108), also order (2) R56433 spacers, ref 35 below, Dozer, Serial Range: -JAK0002063

1шт.

1

R48896

TANK, HYDRAULIC OIL

Includes: manual box (Figure 8-004) and various decals (Figures 9-106 and 9-108), also order (2) R56433 spacers, ref 35 below, Loader, Serial Range: -JAK0005723

1шт.

1

R57160

TANK, HYDRAULIC OIL

SPARE PART Includes: manual box (Figure 8-004) and various decals (Figures 9-106 and 9-108), Dozer JAK0002063 to

1шт.

1

R57160

TANK, HYDRAULIC OIL

SPARE PART Includes: manual box (Figure 8-004) and various decals (Figures 9-106 and 9-108), Loader, Start Serial: JAK0005723

1шт.

2

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

3

192-25

LOCK WASHER,5/8"

4шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8", hardened

4шт.

5

221-37

PLUG

square socket, 1-1/4" NPT, drain

1шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

1шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

1шт.

8

R42714

BREATHER

hydraulic reservoir

1шт.

9

N6475

SET

breather, Includes: element, (2) O-rings, and (2) snap rings

1шт.

10

L106452

GAUGE

hydraulic reservoir

1шт.

R51335

LARGE PLATE

PLATE, LARGE hydraulic reservoir, rear, with filler tube

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - hydraulic reservoir

1шт.

12

R46929

CAP

filler

1шт.

13

R46704

BRACKET

locking, filler cap

1шт.

14

D93753

PADLOCK

hydraulic reservoir cap, Includes: Ref. 15

1шт.

15

R29555

KEY

for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

16

R46621

GASKET

rear cover

1шт.

17

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

10шт.

18

R46984

GASKET

filler cap

1шт.

19

168-78

DRIVE SCREW,Type U, Rnd Hd, #12 x 3/4"

2шт.

20

R48634

FASTENER

chain

1шт.

21

R47786

CHAIN (CE)

filler cap

1шт.

22

R27324

GASKET

filter

1шт.

23

R36277

BLOCK ASSY.

filter

1шт.

24

R27525

VALVE

filter

1шт.

25

R51643

HYDRAULIC OIL FILTER

filter

1шт.

26

F61200

SPRING

filter

1шт.

27

95-8

WASHER,1/2"

Flat

1шт.

28

R36602

ROD

element retaining, order ref 36 - 40 below

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - flat, element

1шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

T53868

BUSHING

filter block mounting

2шт.

33

A161780

BUMPER

rubber, rear access door

1шт.

34

R56995

PROTECTION STRIP

bumper, door, 3 x 16 x 515 mm, if used

1шт.

35

R56433

SPACER

valve mounting, if used

2шт.

36

R56557

STEM

filter, may have one or two grooves

1шт.

37

135-815

GROOVED PIN,5/16" x 3", Type E, Hardened

1шт.

38

22824R1

SNAP RING,#50, Ext

1-2шт.

39

195-2052

WASHER,17/32" x 1 1/8" x .180"

1шт.

40

R56556

HOLDER

1шт.
