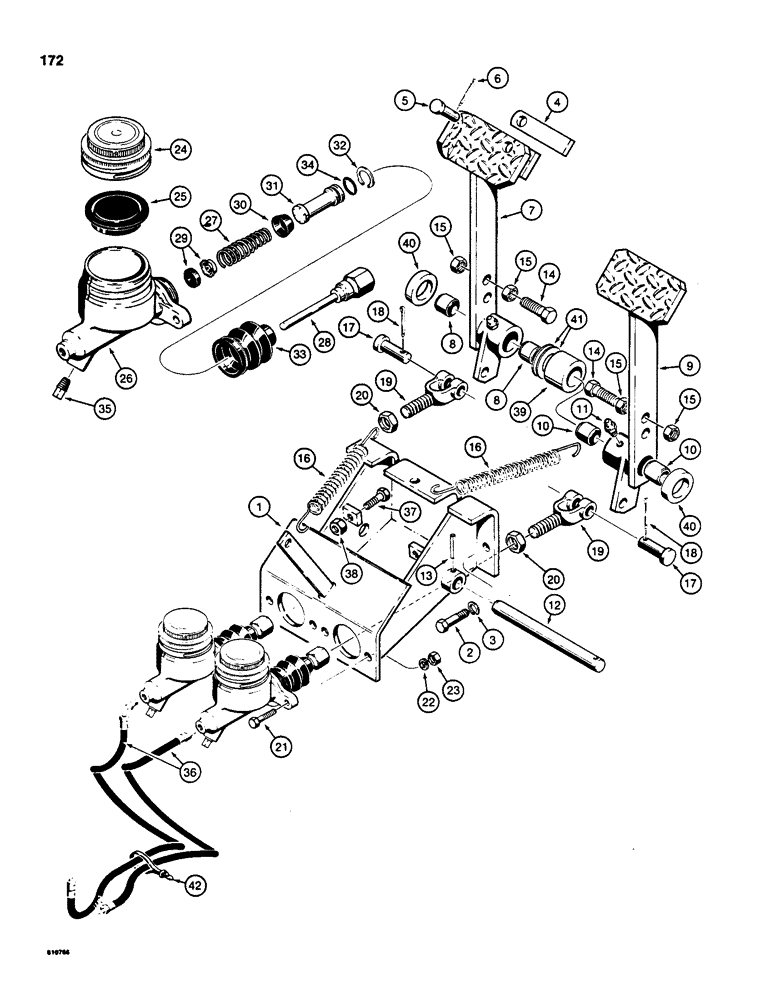

Запчасти Case 855C (172) - POWER BRAKES (04) - UNDERCARRIAGE

1

R43440

BRACKET

FRAME - brake pedals and master cylinders

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

D42840

LOCK

BAR - lock

1шт.

5

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

6

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

7

D48604

PEDAL ASSY.

PEDAL - left-hand, Includes: Ref. 8

1шт.

8

R29752

BUSHING

- left-hand pedal

2шт.

9

D48605

BRAKE ASSY.

PEDAL - right-hand, Includes: Ref. 10

1шт.

10

R29752

BUSHING

- right-hand pedal

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

12

R32456

SHAFT

- pedals

1шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

4шт.

16

R33370

SPRING

- brake

2шт.

17

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

2шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

19

D38620

YOKE

CLEVIS - master cylinder

2шт.

20

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, jam, 7/16" - 20 NF

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

R43758

CYLINDER

MASTER CYLINDER - brake, Includes: Ref. 24 - 34

2шт.

24

N6574

FILLER CAP

CAP - filler, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - cap

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - master cylinder

1шт.

28

D42446

ROD

- actuating

1шт.

D42442

REPAIR KIT

KIT - repair, Includes: Ref. 29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE AND SEAT - master cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

CAP - rubber, master cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

RETAINING RING - piston

1шт.

33

D42443

BOOT

- brake actuating rod

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

35

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

2шт.

36

D39836

HOSE,3.17mm ID x 609.6mm L

- brake

2шт.

37

113-242

BOLT

BOLT - hex head, 3/8" - 16 NC x 1-1/4"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

39

R32454

SPACER

- between pedals

1шт.

40

R32455

SPACER

- pedals, outer

2шт.

41

D35268

SHIM,1/32" Thk

Pedals 1/32" Thk

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - brake hoses

1шт.
