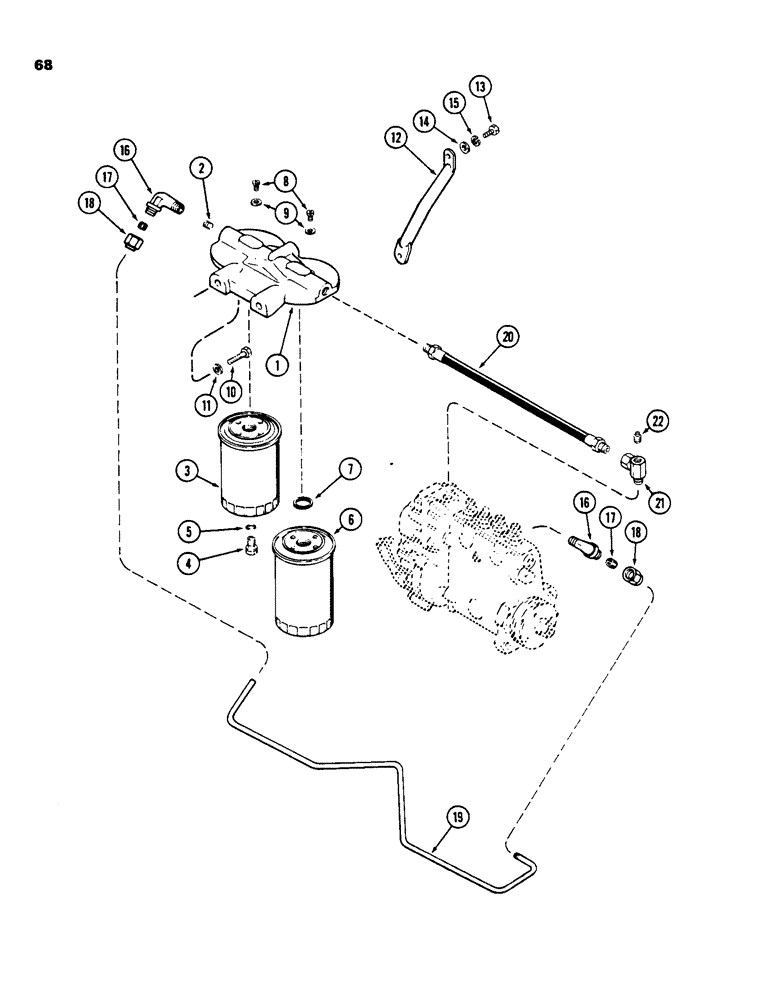

Запчасти Case 855C (068) - FUEL FILTER SYSTEM, 336BD AND 336BDT DIESEL ENGINES (02) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- (1/8" P.T., socket hex. head)

1шт.

A41745

KIT

ELEMENT KIT - fuel filters, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - 1st stage

1шт.

4

G49080

PLUG

- filter drain (3/8"-24, 12 point head, plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - 2nd stage

1шт.

7

A42315

GASKET

-, Serial Range: filter-head

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (No. 10-32 x 5/16" fillister head)

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (aluminum)

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Filter mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A155421

SUPPORT

- filter head

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.1 x 25.4 x 2 mm)

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line, Includes: Ref. 17 and 18

2шт.

17

222-103

SLEEVE,5/16" Tube

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

19

A62341

TUBE

- pump to 1st stage filter

1шт.

20

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage, Serial Range: filter-pump

1шт.

21

A20539

FITTING

UNION - hose (in pump)

1шт.

22

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union (1/8" PT, square head)

1шт.
