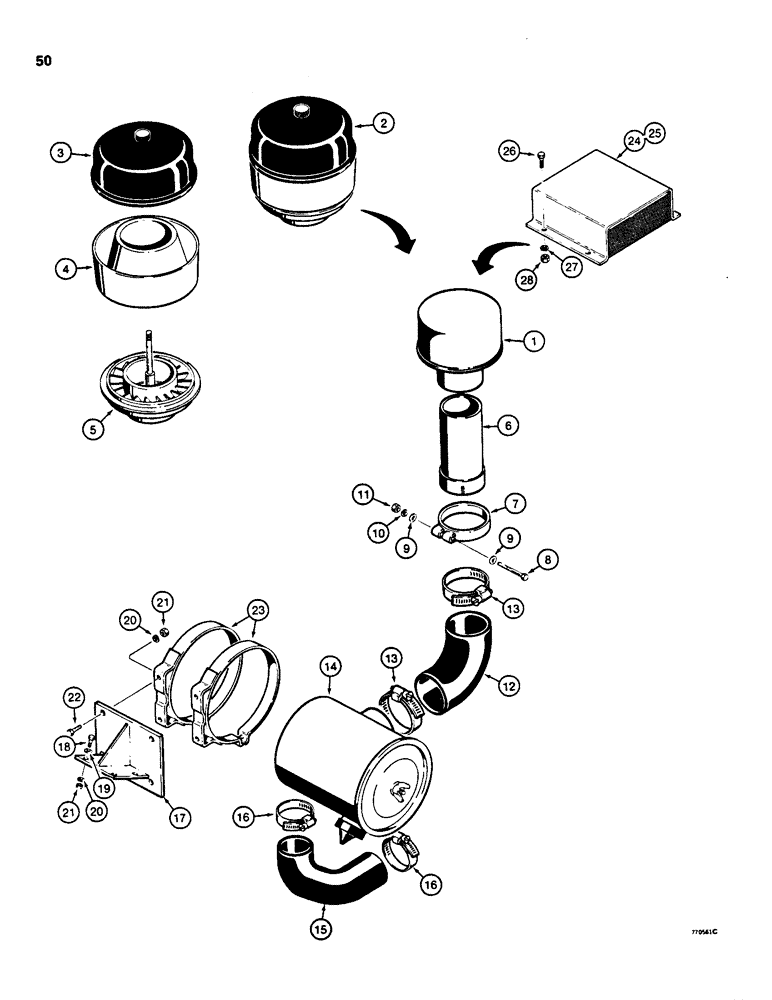

Запчасти Case 855C (050) - AIR CLEANER SYSTEM, MODELS WITH TURBOCHARGER (01) - ENGINE

1

W13501

CAP

- inlet, if used

1шт.

2

A43616

FILTER

PRECLEANER - air, if used, Includes: Ref. 3 - 5

1шт.

3

A42465

COVER

- precleaner

1шт.

4

A42467

HOUSING

BOWL - precleaner

1шт.

5

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.

6

R36598

TUBE

- air inlet

1шт.

7

R27271

CLAMP

- inlet tube

1шт.

8

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

9

195-25

WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

R40178

INTAKE AIR HOSE

- Air cleaner inlet

1шт.

13

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - air cleaner inlet hose

2шт.

14

R40177

AIR CLEANER - parts list figure 52

1шт.

15

R33840

INTAKE AIR HOSE,3.00" ID x 5.85", SAE 10R4, SAE SC710 Per SAE J14

- Air cleaner to turbocharger 3.00" ID x 5.85", SAE 10R4, SAE SC710 Per SAE J14

1шт.

16

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose

2шт.

17

R44693

BRACKET

- air cleaner mounting

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

19

195-25

WASHER,3/8"

4шт.

20

92-6

LOCK WASHER,3/8"

8шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

L60147

CLAMP - air cleaner, includes hardware

2шт.

24

R33439

COVER

ASSEMBLY - air intake, noise reduction, includes pad, for pad see figure 336, if used, Includes: Ref. 25

1шт.

25

R33437

COVER

- air intake, without pad

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
