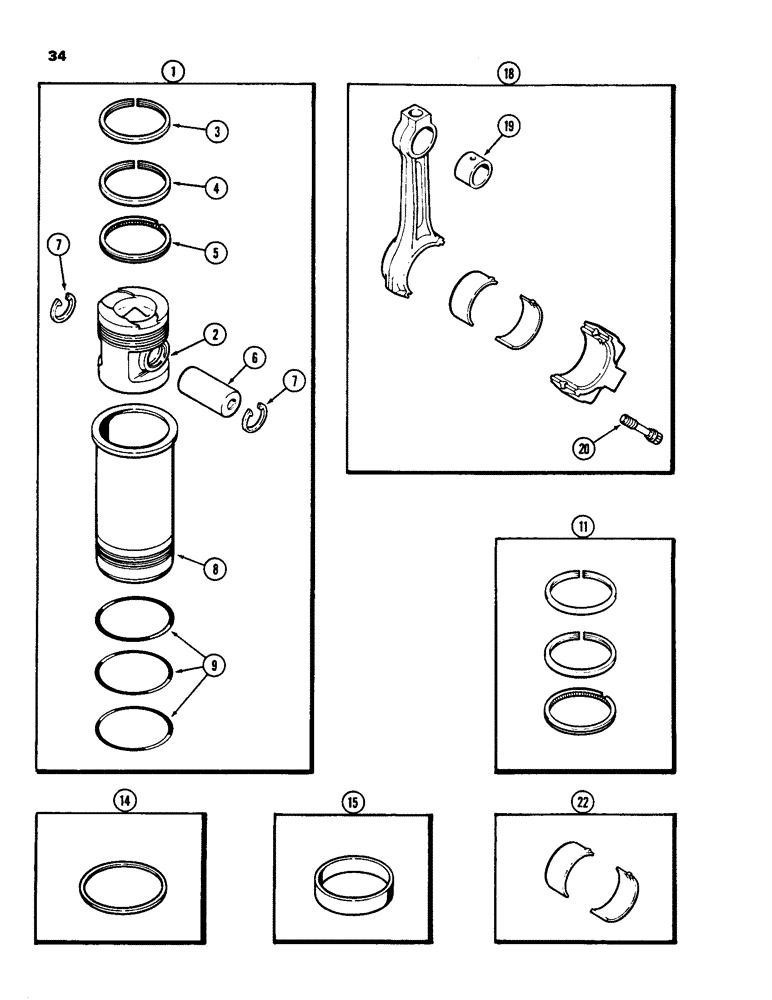

Запчасти Case 855C (034) - PISTONS AND SLEEVES, WITH 5.194" TO 5.189" FIRE DAM DIA. SLEEVES 336BD & 336BDT DIESEL ENGINES. (01) - ENGINE

1

A156931

KIT

PISTON AND SLEEVE ASSEMBLY - engine (Set of 2), Includes: Ref. 2 - 9

2шт.

2

A66531

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(Order Ref 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(Order Ref 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove)(Order Ref. 11)

2шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

2шт.

(1.6246 - 1.6244 O.D.)

1шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - cylinders, (With 3 grooves)

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

- sleeve

6шт.

11

A44060

RING

SET - piston re-ring (Set of 1)

4шт.

14

A148553

SHIM

- sleeve, 0.010" (0.254 mm)(Repairs Only)

1шт.

14

A148554

SHIM

- sleeve, 0.005" (0.127 mm)(Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

- sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

4шт.

AC62954

CORE-ROD CONNECTING

Return Number, N.A. Only

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

- piston pin, connecting rod

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap

2шт.

22

A43173

BEARING LINER

INSERT - connecting rod bearing, (Standard) (Set of 2)

4шт.

22

A43174

BEARING LINER

INSERT - connecting rod bearing, -0002" (-0051 mm) undersize^.text0^(Set of 2)

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, -0010" (-0254 mm) undersize^.text0^(Set of 2)

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, -0020" (-0508 mm) undersize^.text0^(Set of 2)

4шт.

22

A43177

BEARING LINER

INSERT - connecting rod bearing, -0030" (-0762 mm) undersize^.text0^(Set of 2)

4шт.
