Запчасти Case 855C (030) - CRANKSHAFT AND FLYWHEEL, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE

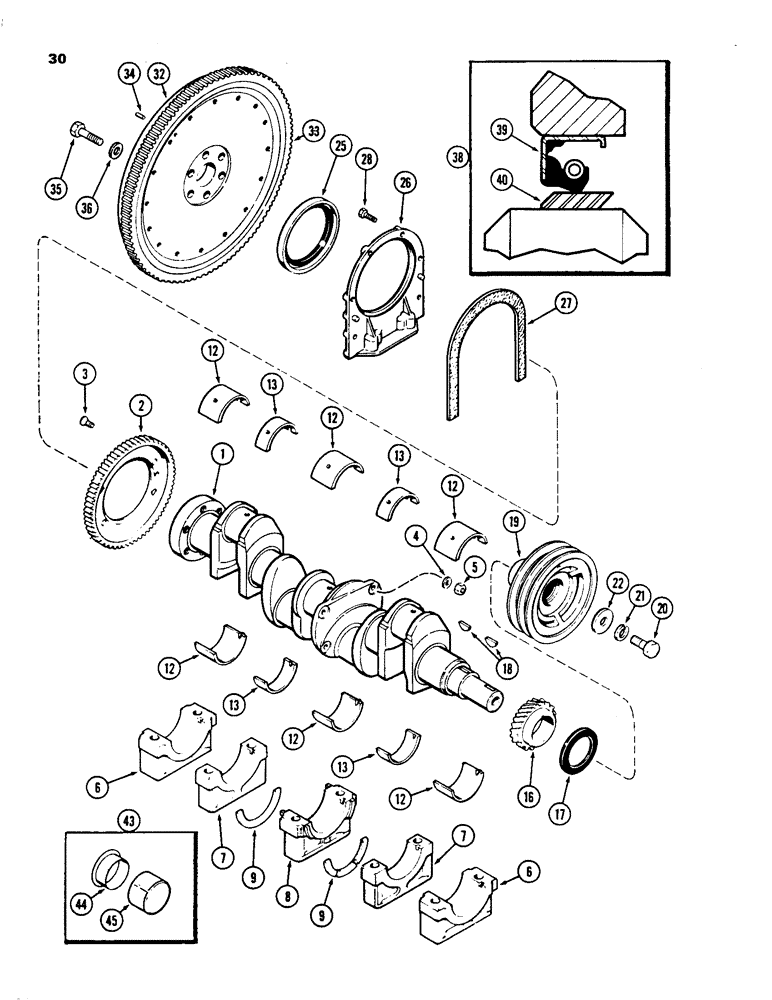

Схема запчастей Case 855C - (030) - CRANKSHAFT AND FLYWHEEL, 336BD AND 336BDT DIESEL ENGINES (01) - ENGINE
2
7
4
45
8
38
35
40
27
12
33
21
39
6
13
43
9
12
6
22
9
26
16
36
12
12
44
17
20
34
13
13
18
25
12
5
32
19
28
1
7
3
12
13

Артикул

Название

Примечание

Количество

1

A155437

SHAFT

CRANKSHAFT - engine

1шт.

2

A154998

GEAR

- balancer drive (86 teeth)

1шт.

3

A155438

SCREW,Torx, 3/8" - 24 x 1 1/4"

- drive gear (3/8" N.F. flat sckt. hd.)

4шт.

4

A50820

WASHER

- drive gear screw

4шт.

5

A51904

NUT

NUT - drive gear screw

4шт.

6

A154391

CAP

- main bearing, front and rear (wide)

2шт.

7

A154390

CAP

- main bearing, intermediate (narrow)

2шт.

8

A154392

CAP

- main bearing, thrust, center (wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing (Standard) 0185" (4699 mm)

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing (Oversize) 0.191" (4.851 mm)

2шт.

12

A43163

BEARING LINER

LINER SET - main bearing, wide (Standard) (Set of 2)

3шт.

12

A43164

BEARING LINER

LINER SET - main bearing, wide, -0.002" (-0.051 mm) (Set of 2)

3шт.

12

A43165

BEARING LINER

LINER SET - main bearing, wide, -0.010" (-0.254 mm) (Set of 2)

3шт.

12

A43166

BEARING LINER

LINER SET - main bearing, wide, -0.020" (-0.508 mm) (Set of 2)

3шт.

12

A43167

BEARING LINER

LINER SET - main bearing, wide, -0.030" (-0.762 mm) (Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main bearing, narrow (Standard) (Set of 2)

2шт.

13

A43159

BEARING LINER

LINER SET - main bearing, narrow, -0.002" (-0.051 mm) (Set of 2)

2шт.

13

A43160

BEARING LINER

LINER SET - main bearing, narrow, -0.010" (-0.254 mm) (Set of 2)

2шт.

13

A43161

BEARING SET

LINER SET - main bearing, narrow, -0.020" (-0.508 mm) (Set of 2)

2шт.

13

A43162

BEARING LINER

LINER SET - main bearing, narrow, -0.030" (-0.762 mm) (Set of 2)

2шт.

16

A66404

GEAR

- crankshaft

1шт.

17

A62049

OIL SEAL

- oil, front

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear and pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A61163

PULLEY

- crankshaft

1шт.

20

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- pulley, 5/8 x 1-1/2" N.F., hex. hd.

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A156428

WASHER

- pulley

1шт.

25

A62050

OIL SEAL

- oil, rear (See Ref. 38)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil seal retainer

1шт.

28

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - retainer, 3/8 x 1-1/4" NC hex Sems

6шт.

32

A60508

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 33 and 34

1шт.

33

A27920

GEAR

- ring, flywheel

1шт.

34

A27840

PIN

- flywheel

1шт.

35

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.F. hex.)

6шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft rear, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, wear kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear kit

1шт.

43

A154684

SLEEVE

WEAR SLEEVE KIT - oil, crankshaft front, Includes: Ref. 44 and 45

1шт.

44

NSS

NOT SOLD SEPARAT

SLEEVE - wear kit

1шт.

45

NSS

NOT SOLD SEPARAT

DRIVER - sleeve, wear kit

1шт.

Выбрано товаров: 42
