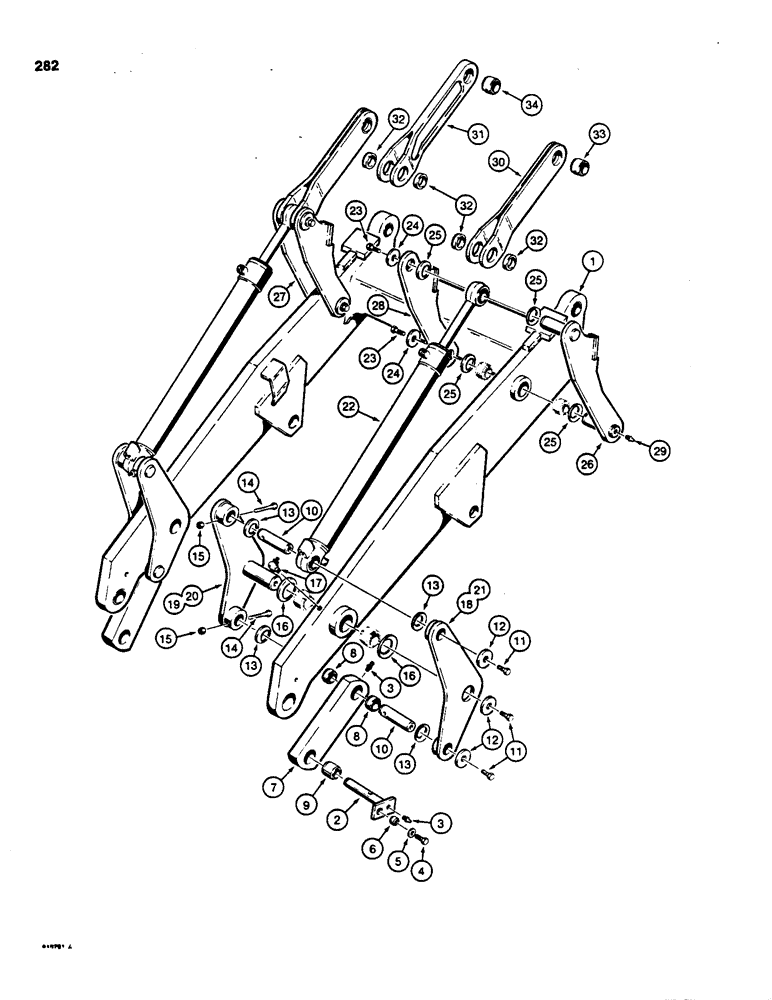

Запчасти Case 855C (282) - LOADER LIFT FRAME, BUCKET CYLINDERS AND LINKS (07) - HYDRAULIC SYSTEM

1

R45320

ARM, LIFT

FRAME - loader lift, see figure 280 for bushings

1шт.

2

R40132

AXLE PIN

PIN - leveling links

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

4

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

2шт.

5

D31328

WASHER

- hardened, 3/4"

2шт.

6

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

7

R34343

DRAG LINK

LINK - leveling, Includes: Ref. 8 and 9

2шт.

8

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- leveling link, short

2шт.

9

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- leveling link, long

1шт.

10

R40507

AXLE PIN

PIN - bucket cylinder links

4шт.

11

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

6шт.

12

R40509

WASHER

- hardened

6шт.

13

R36578

SPRING

BELLEVILLE SPRING - 2" (51 mm) ID

8шт.

14

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

15

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

16

R36577

WASHER,107.95mm OD x 1.828mm Thk

- 2-1/2" (64 mm) ID

4шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

18

R40502

DRAG LINK

LINK - bucket cylinder, left-hand, inner

1шт.

19

R40501

DRAG LINK

LINK - bucket cylinder, right-hand, inner

1шт.

20

R34346

DRAG LINK

LINK - bucket cylinder, left-hand, outer

1шт.

21

R34347

DRAG LINK

LINK - bucket cylinder, right-hand, outer

1шт.

22

G101210

CYLINDER

- loader bucket, parts list figure 218

2шт.

23

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite 242 (blue) Hex, 3/4"-10 x 2", G5

4шт.

24

R40509

WASHER

- hardened

4шт.

25

R36578

SPRING

BELLEVILLE SPRING - 2" (51 mm) ID

8шт.

26

R40503

LINK

- dump, right-hand, outer

1шт.

27

R40504

LINK

- dump, left-hand, outer

1шт.

28

R38088

LINK

- dump, inner

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

30

R38077

LINK

ASSEMBLY - dump, upper, welded assembly, no longer used

1шт.

NSS

NOT SOLD SEPARAT

order R47936 link

2шт.

31

R47936

LINK ASSY.

LINK ASSEMBLY - dump upper, one-piece casting, Includes: Ref. 32 - 34

2шт.

32

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- 3/4" (19 mm) wide, used in both link assemblies

2шт.

33

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- 1-1/2" (38 mm) wide, R38077 welded link assembly only, if used

1шт.

34

R28550

BUSHING

- 1-11/16" (42 mm) wide, R47936 cast link assembly only, if used

1шт.
