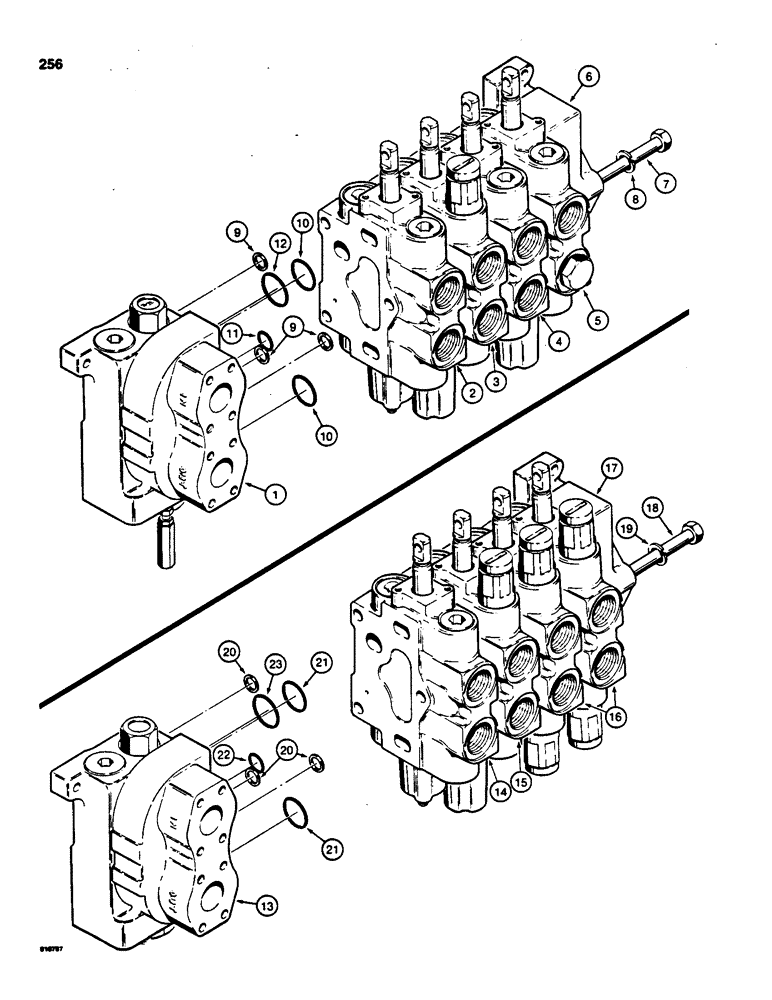

Запчасти Case 855C (256) - R46554 FOUR SPOOL CONTROL VALVE, ANGLE TILT DOZER WITH BACKHOE (07) - HYDRAULIC SYSTEM

R46554

VALVE

CONTROL VALVE - angle tilt dozer, Includes: Ref. 1 - 12

1шт.

1

N7485

VALVE

SECTION - inlet and outlet, identification no. 108, parts list figure 262

1шт.

Identification numbers are between section ports.

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270

1шт.

Identification numbers are between section ports.

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266

1шт.

Identification numbers are between section ports.

1шт.

4

D87073

SEGMENT

SECTION - dozer angle, identification no. 217, parts list figure 270

1шт.

Identification numbers are between section ports.

1шт.

5

D87096

VALVE

SECTION - backhoe, identification no. 220, parts list figure 272

1шт.

Identification numbers are between section ports.

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40895

VALVE

CONTROL VALVE - tilt dozer, 4 spool or drawbar with dual pull behind, Includes: Ref. 13 - 23

1шт.

13

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list figure 260, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

1шт.

Identification numbers are between section ports.

1шт.

14

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list figure 270, R40895 control valve 4 spool or drawbar with dual pull behind

1шт.

Identification numbers are between section ports.

1шт.

15

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list figure 266, R40895 control valve 4 spool tilt or drawbar with dual pull behind

1шт.

Identification numbers are between section ports.

1шт.

16

D87078

VALVE

SECTION - dual pull behind, identification no. 215, parts list figure 274, R40895 control valve 4 spool tilt dozer or drawbar with

2шт.

Identification numbers are between section ports.

1шт.

17

D87072

COVER ASSY

COVER - end, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

1шт.

18

D74375

BOLT

- special, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

3шт.

19

92-7

LOCK WASHER,7/16"

R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind 7/16"

3шт.

20

D77566

SHIM,.0030" Thk

Sections, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind, Includes: Ref. 21 - 23

5шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD, R40895 control valve 4 spool tilt dozer or drawbar with dual pull behind

1шт.
