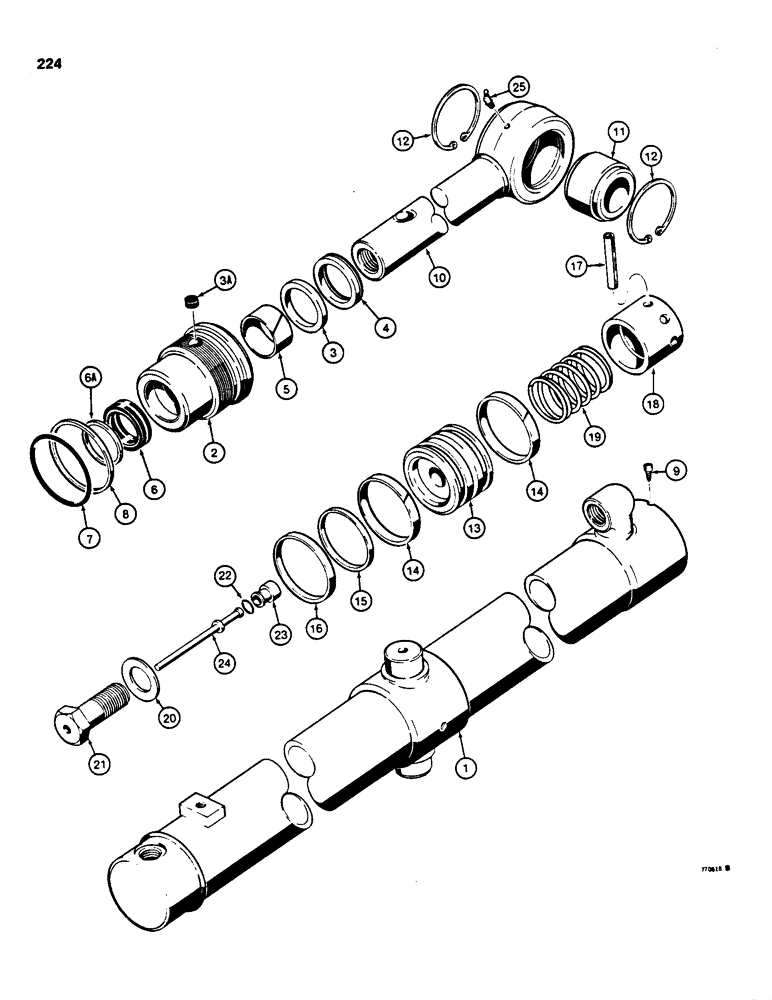

Запчасти Case 855C (224) - G101218 DOZER LIFT CYLINDERS, TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

G101218

CYLINDER

ASSEMBLY - lift, 3" (76 mm) ID x 33-29/32" (861 mm) stroke, Includes: Ref. 1 - 25

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G35491

TUBE - cylinder

1шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G105549

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G105549

1шт.

6

D36970

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105549

1шт.

6a

G103705

SEAL

- piston rod, narrow, used in addition to ref 6 in some glands

1шт.

Part of seal kit P/N G105549

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105549

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105549

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

10

G35495

ROD

- piston, 1-3/4" (44 mm) diameter, Includes: Ref. 11 and 12

1шт.

11

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING - self-aligning

1шт.

12

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

2шт.

13

G100704

PISTON

- cylinder

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G105549

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105549

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G105549

1шт.

17

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

18

G103433

RETAINER

- spring

1шт.

19

G101523

SPRING

- cylinder

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G35499

VALVE

BYPASS VALVE ASSEMBLY - cylinder, Includes: Ref. 21 - 24

1шт.

21

G35500

BOLT - special

1шт.

22

D26872

O-RING

- plunger seat

1шт.

23

G35502

SEAT - plunger

1шт.

24

G35501

VALVE POPPET

PLUNGER - bypass valve

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G105549

SEAL

KIT - seal, Includes: Refs. 4, 5, 6, 6A, 7, 8, 14, 15 and 16, includes G102405 kit plus item 6A above

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - severe heat or cold

1шт.
