Запчасти Case 855C (222) - G101217 DOZER LIFT CYLINDERS, ANGLE TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

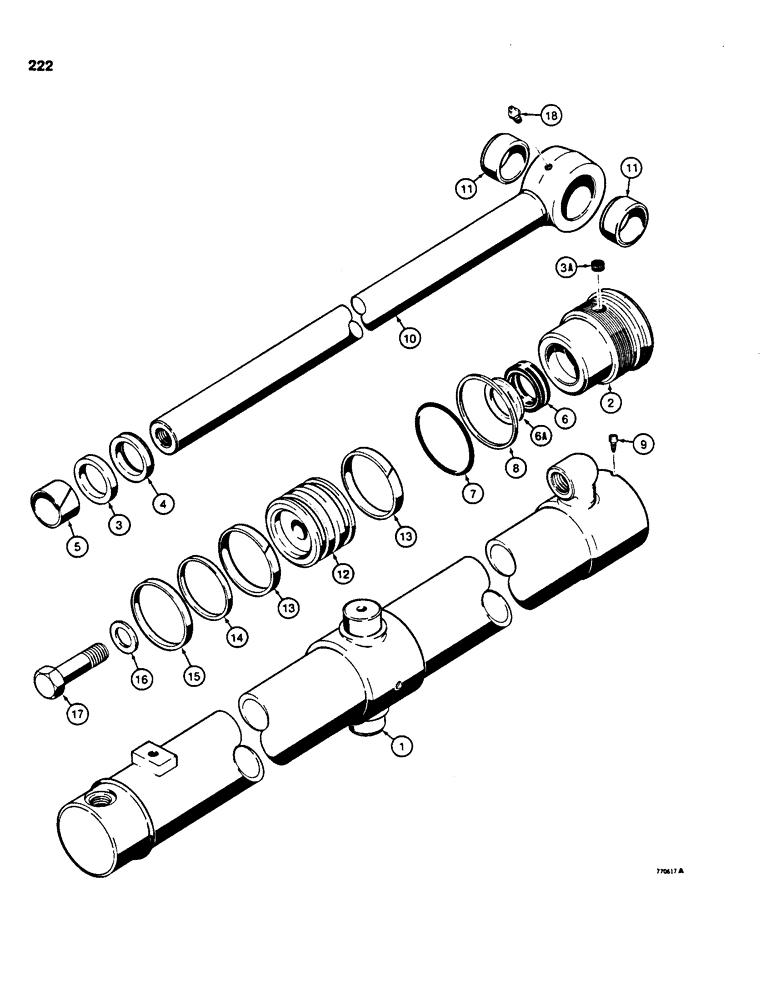

Схема запчастей Case 855C - (222) - G101217 DOZER LIFT CYLINDERS, ANGLE TILT DOZER MODELS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

G101217

CYLINDER

ASSEMBLY - lift, 3" (76 mm) ID x 29-19/32" (752 mm) stroke, Includes: Ref. 1 - 18

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G35465

TUBE

- cylinder

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G105548

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G105548

1шт.

6

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105548

1шт.

6a

G104224

SEAL

- piston rod, narrow, used in addition to ref 6 in some glands

1шт.

Part of seal kit P/N G105548

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland (replaces A30059)

1шт.

Part of seal kit P/N G105548

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105548

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

10

G35470

ROD

- piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

12

G100442

PISTON

- cylinder

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G105548

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G105548

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G105548

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105548

KIT

- seal, Includes: Refs. 4, 5, 6, 6A, 7, 8, 13, 14 and 15, includes G102404 kit plus item 6A above

1шт.

G100776

SEAL

- rod, service option - severe heat or cold

1шт.
