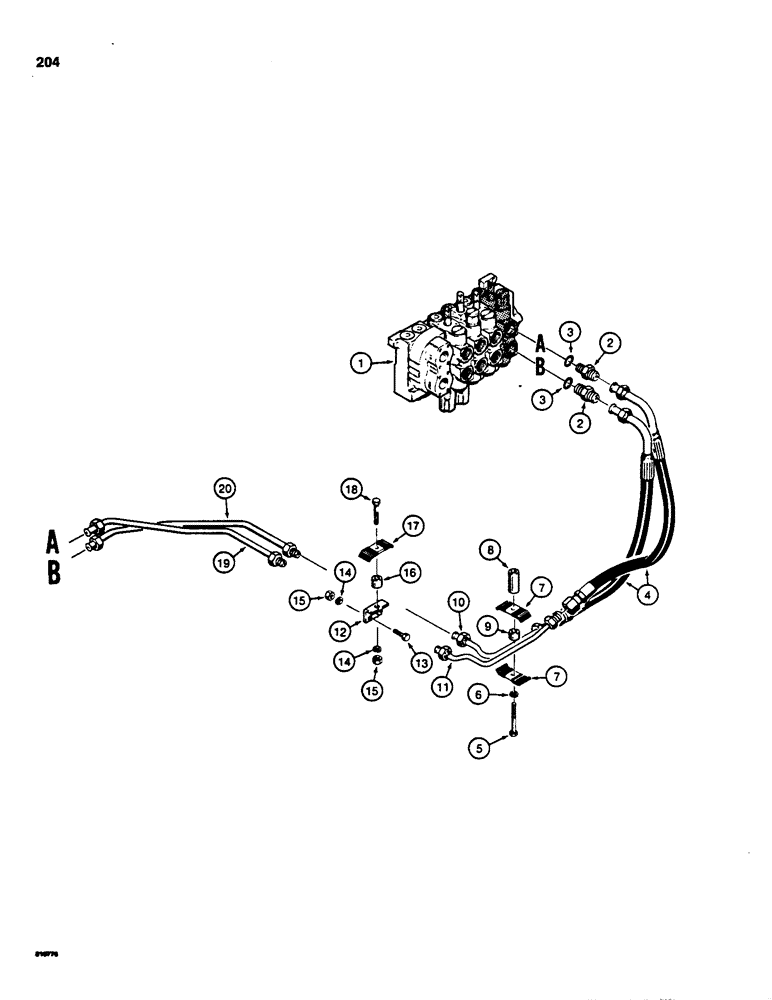

Запчасти Case 855C (204) - RIPPER HYDRAULIC CIRCUIT, CONTROL VALVE TO REAR OF TRACTOR (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - see figures 248, 250, 254, or 258 for correct valve

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

R38890

HOSE

- at control valve

2шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

R36022

CLAMP

- tubes

2шт.

8

D76210

SPACER

- 15/16" (24 mm) long

1шт.

9

D76209

SPACER

- 5/8" (16 mm) long

1шт.

10

R38888

TUBE,0.625" OD

- port B

1шт.

11

R38886

TUBE,0.625" OD

- port A

1шт.

12

R36023

BRACKET

- tube support

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

D76209

SPACER

- clamp, 5/8" (16 mm) long

1шт.

17

R36022

CLAMP

- tubes

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

R35511

TUBE

- port A

1шт.

20

R35509

TUBE

- port B

1шт.
