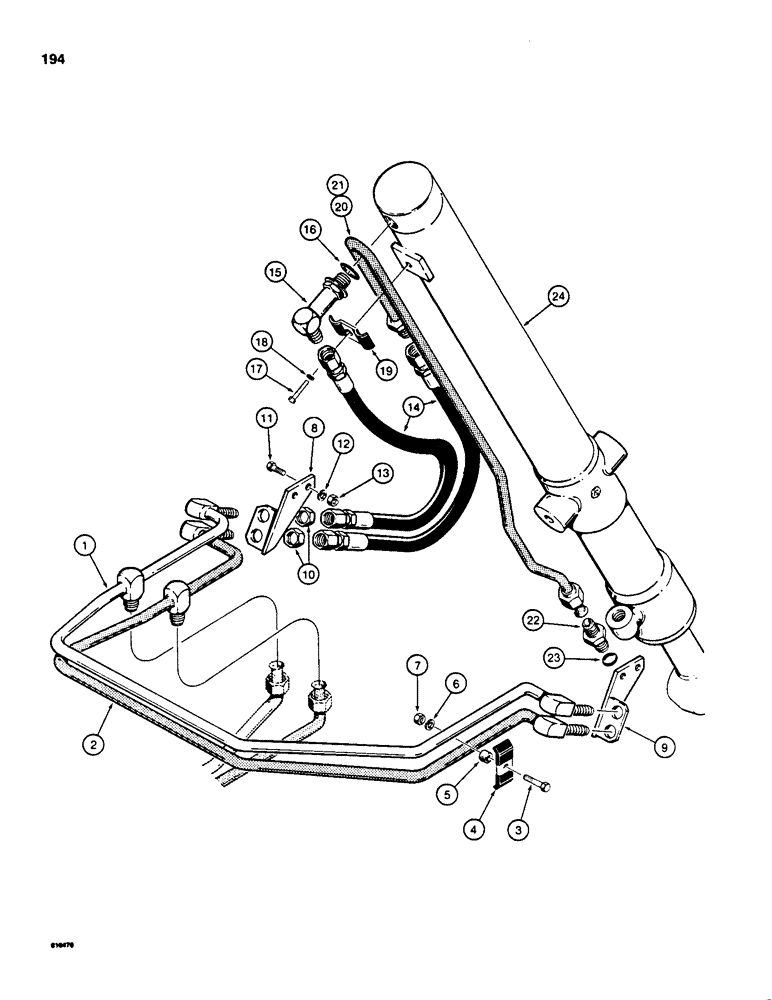

Запчасти Case 855C (194) - DOZER LIFT HYDRAULIC CIRCUIT, CYLINDER TUBES TO CYLINDERS (07) - HYDRAULIC SYSTEM

1

R34058

TUBE,0.625" OD

- upper, A port, to closed end of lift cylinder

1шт.

2

R34061

TUBE,0.625" OD

- lower, B port, to rod end of lift cylinder

1шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

R25528

CLAMP

- tubes

1шт.

5

D76209

SPACER

- clamp

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

8

R34052

BRACKET

- tube mounting, left-hand

1шт.

9

R34053

BRACKET

- tube mounting, right-hand

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

14

18917

HOSE

- 34-3/4" (883 mm) long, used on angle tilt dozer models

4шт.

14

L46723

HOSE

- 42" (1067 mm) long, used on tilt dozer models

4шт.

15

D25136

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

R34176

PIPE

CLAMP - lift cylinder tubes

2шт.

20

R34098

TUBE,0.625" OD

- rod end, left-hand, tilt dozer models

1шт.

20

R34101

TUBE,0.625" OD

- rod end, left-hand, angle tilt dozer models

1шт.

21

R34099

TUBE

- rod end, right-hand, tilt dozer models

1шт.

21

R34102

TUBE,0.625" OD

- rod end, right-hand, angle tilt dozer models

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 23

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

24

G101218

CYLINDER

- lift, tilt dozer models, parts list figure 224

2шт.

24

G101217

CYLINDER

- lift, angle tilt dozer models, parts list figure 222

2шт.
