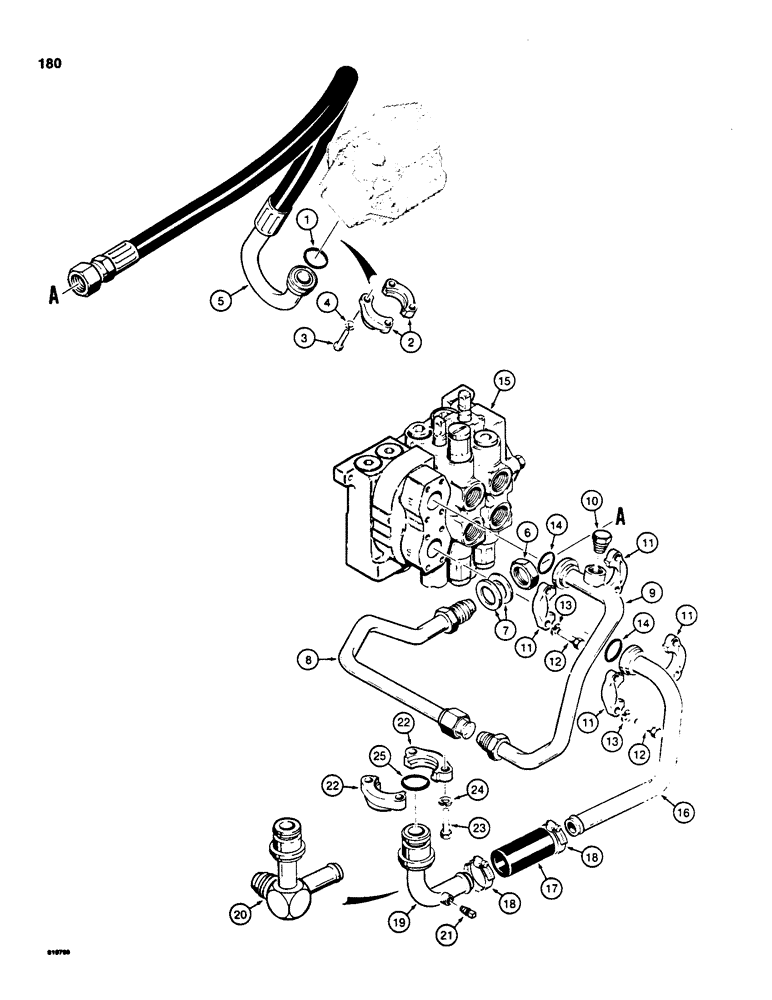

Запчасти Case 855C (180) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR (07) - HYDRAULIC SYSTEM

1

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

-pump, outlet side

1шт.

2

A12306

FLANGE

CLAMP - split flange

2шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

R38048

HOSE

- pump to control valve

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

1шт.

7

195-2131

WASHER,1 3/8" x 2" x .065"

- flat, 1-5/16"

2шт.

8

R34910

TUBE,1" OD

- to control valve, intermediate

1шт.

9

R35199

TUBE

- at control valve

1шт.

10

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

11

A12301

CLAMP,Half

CLAMP - split flange

4шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

8шт.

13

92-7

LOCK WASHER,7/16"

8шт.

14

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tubes, at control valve

2шт.

15

REF

INSTRUCTION

CONTROL VALVE - equipment, see figures 246 thru 258 for correct control valve

1шт.

16

R35206

TUBE,1.25" OD

- from control valve, to hydraulic reservoir

1шт.

17

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- 1-1/4" (31 mm) ID x 4" (102 mm) long 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

18

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

19

R33400

TUBE,1.25" OD x 4.2, 3.64" L

- to hydraulic reservoir, models without backhoe

1шт.

20

R35286

TUBE,1.25" OD x 4.12, 3.99" L

- to hydraulic reservoir, models with backhoe

1шт.

21

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

22

R27612

CLAMP

- split flange

2шт.

In the Artwork, this is not pictured correctly. The R27612 has only one bolt-hole. For accurate picture, see 1550 catalog.

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- tube, at hydraulic reservoir

1шт.
