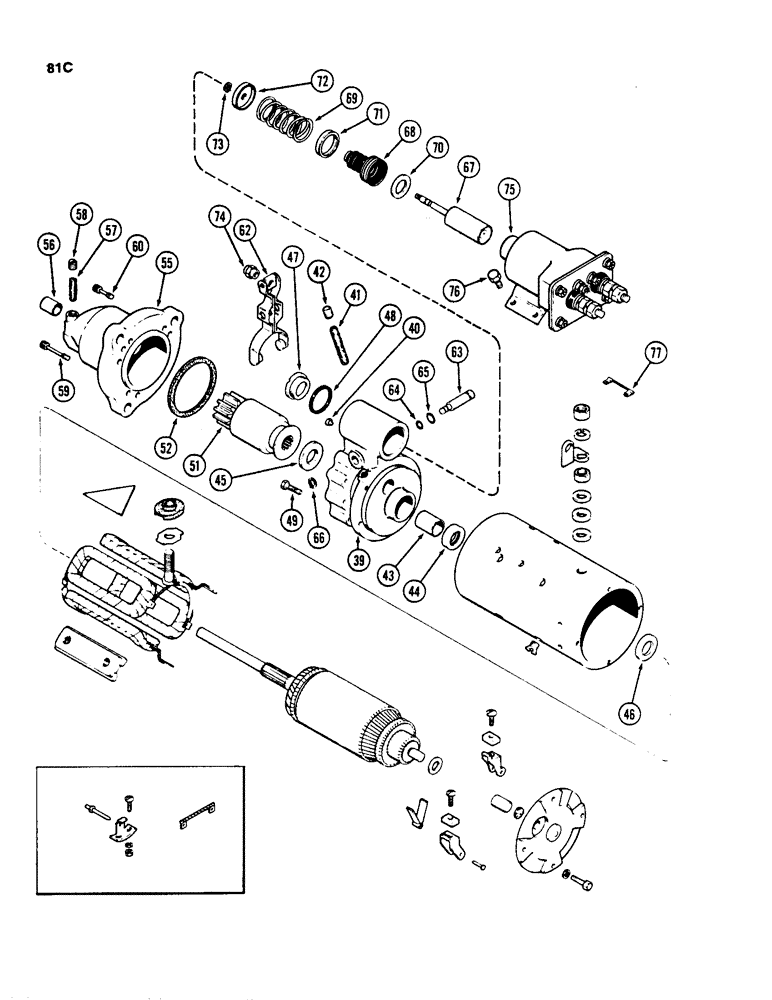

Запчасти Case 855C (081C) - R47368 STARTER (06) - ELECTRICAL SYSTEMS

R47368

STARTER ASSEMBLY - engine (continued from Figure 81A), Includes: Ref. 39 - 77

1шт.

39

A47896

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 40 - 45

1шт.

40

A47897

PLUG

1шт.

41

A47888

WICK

- oil

1шт.

42

A47889

PLUG

- oil wick

1шт.

43

A47842

PUMP

BUSHING - armature

1шт.

44

R21582

OIL SEAL

- oil, 13/16 x 1-3/8 x 3/8" (2064 x 3493 x 953 mm)

1шт.

45

R15145

DISC

WASHER - brake, 7/16 x 1-7/8 x 3/16" (1111 x 4763 x 476 mm)

1шт.

46

A40892

WASHER

- thrust, drive end

1шт.

47

R21587

PLUG

- housing

1шт.

48

A41924

GASKET

- plug

1шт.

49

D32484

SCREW,Hex, 1/4" - 28 x 1"

BOLT - housing to body, 1/4 x 1" NF hex

5шт.

51

A47523

DRIVE

ASSEMBLY - starter pinion

1шт.

52

R21562

GASKET

- drive housing to drive end

1шт.

55

A44340

HOUSING

ASSEMBLY - drive end, Includes: Ref. 56 - 58

1шт.

56

A47257

BUSHING

- 5/8 x 3/4 x 7/8" (1588 x 1905 x 2223 mm)

1шт.

57

R15023

WICK

- oil

1шт.

58

221-1041

PLUG

- 1/8" PT, slotted head

1шт.

59

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing, 5/16 x 1-1/2" NC socket head

5шт.

60

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing, 5/16 x 7/8" NC socket head

1шт.

62

D32547

LEVER

- shift control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

A47258

O-RING,0.369" ID x 0.515" OD

- shaft, 1/4 ID x 1/16" width (6.35 ID x 1.59 mm width)

1шт.

65

A47259

O-RING,0.244" ID x 0.391" OD

- shaft, 3/8 ID x 1/16" width (9.53 ID x 1.59 mm width)

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

67

A42309

PLUNGER

- solenoid

1шт.

68

A42308

BOOT

- plunger (rubber)

1шт.

69

A41242

SPRING

- plunger return

1шт.

70

A41922

WASHER

- spring seat, 13/16 x 1-3/8 x 1/32" (2064 x 3493 x 079 mm)

1шт.

71

A43380

BACK-UP RING

RETAINER - plunger spring,inner 1-3/16" hole (30.16 mm)

1шт.

72

A43419

SEAT

RETAINER - plunger spring, outer 3/8" hole (953 mm)

1шт.

73

G46146

SNAP RING,#37, Ext

Ring, Snap, , retainer to plunger #37, Ext

1шт.

74

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever, 5/16" NF special

1шт.

75

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid to body, 1/4 x 3/8" NF hex

4шт.

77

A42408

ELECTRICAL WIRE

LEAD - ground, solenoid

1шт.
