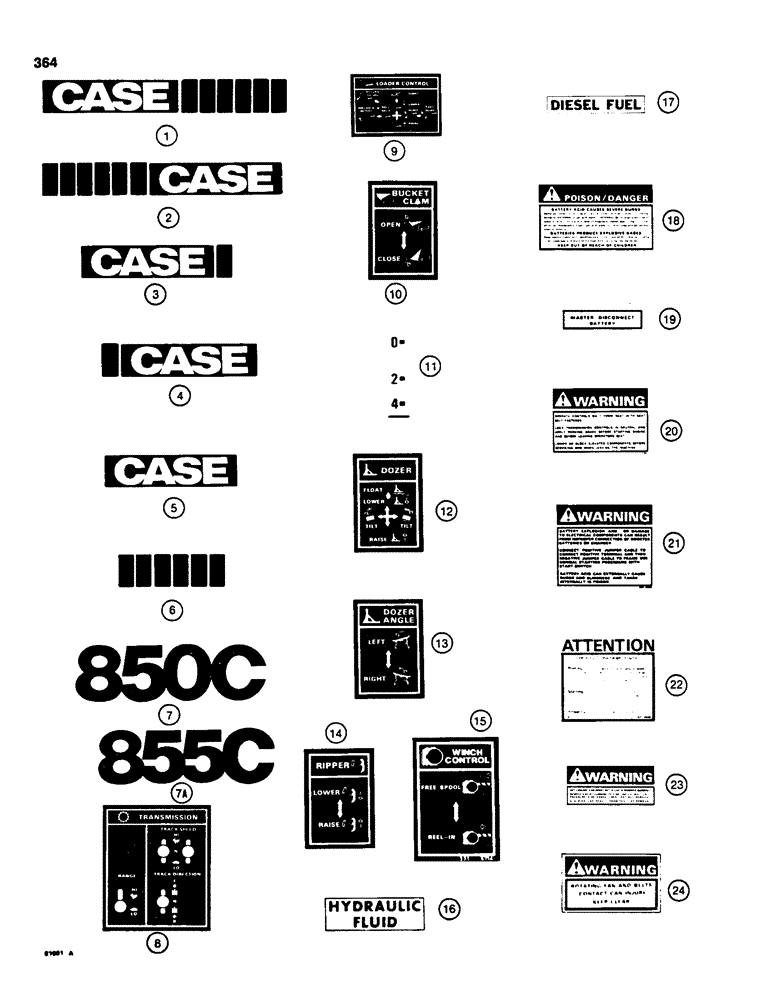

Запчасти Case 855C (364) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R45929

DECAL

KIT - includes black decals, if used, Includes: Ref. 1 - 24

1шт.

R48719

KIT

- includes brown decals, if used, Includes: Ref. 1 - 24

1шт.

1

321-5293

DECAL

- Case, left-hand, 6" (152 mm), dozer and drawbar models, if used

1шт.

1

R48496

DECAL

- Case, left-hand, 6" (152 mm), dozer and drawbar models, brown, if used

1шт.

2

321-5292

DECAL

- Case, right-hand, 6" (152 mm), dozer and drawbar models, black, if used

1шт.

2

R48495

DECAL

- Case, right-hand, 6" (152 mm), dozer and drawbar models, brown, if used

1шт.

3

321-5295

DECAL

- Case, left-hand, 5" (127 mm), loader models, black, if used

1шт.

3

R48497

DECAL

- Case, left-hand, 5" (127 mm) loader models, brown, if used

1шт.

4

321-5296

DECAL

- Case, right-hand, 5" (127 mm), loader models, black, if used

1шт.

4

R48498

DECAL

- Case, right-hand, 5" (127 mm), loader models, brown, if used

1шт.

5

321-5031

DECAL

- Case, rear of seat frame, 6" (152 mm), black, if used

1шт.

5

R48489

DECAL

- Case, rear of seat frame, 6" (152 mm), brown, if used

1шт.

6

321-3116

DECAL

- treadmark, 6" (152 mm), used with item 5, black, if used

2шт.

6

R48487

DECAL

- treadmarks, 6" (152 mm), used with item 5, brown, if used

1шт.

7

321-6322

DECAL

- 850C, black, if used

2шт.

7

R48501

DECAL

- 850C, dozer and drawbar models, brown, if used

2шт.

7a

R49134

DECAL

- 855C, loader models, brown, if used

2шт.

8

321-4177

DECAL

- Transmission, shift pattern

1шт.

9

321-4396

DECAL

- Loader Control pattern

1шт.

10

321-4184

DECAL

- Bucket Clam control pattern

1шт.

11

321-1706

DECAL

- clam bucket position indicator

1шт.

12

321-4181

DECAL

- Dozer control pattern

1шт.

13

321-4182

DECAL

- Dozer Angle control pattern

1шт.

14

321-4185

DECAL

- Ripper control pattern

1шт.

15

321-5714

DECAL

- Winch control

1шт.

16

321-229

DECAL

- Hydraulic Fluid

1шт.

17

321-230

DECAL

- Diesel Fuel

1шт.

18

321-2996

DECAL

- Poison/Danger, battery acid

1шт.

19

321-2392

DECAL

- Master Disconnect

1шт.

20

321-4188

DECAL

- Warning, operate from seat

1шт.

21

321-4190

DECAL

- Warning, battery explosion

1шт.

22

321-2605

DECAL

- Attention, Operating Turbocharged Engine

1шт.

23

321-6672

DECAL

- Warning, hot coolant (replaces 321-5734)

1шт.

24

321-3596

DECAL

- Warning, Rotating Fan and Belts

2шт.
