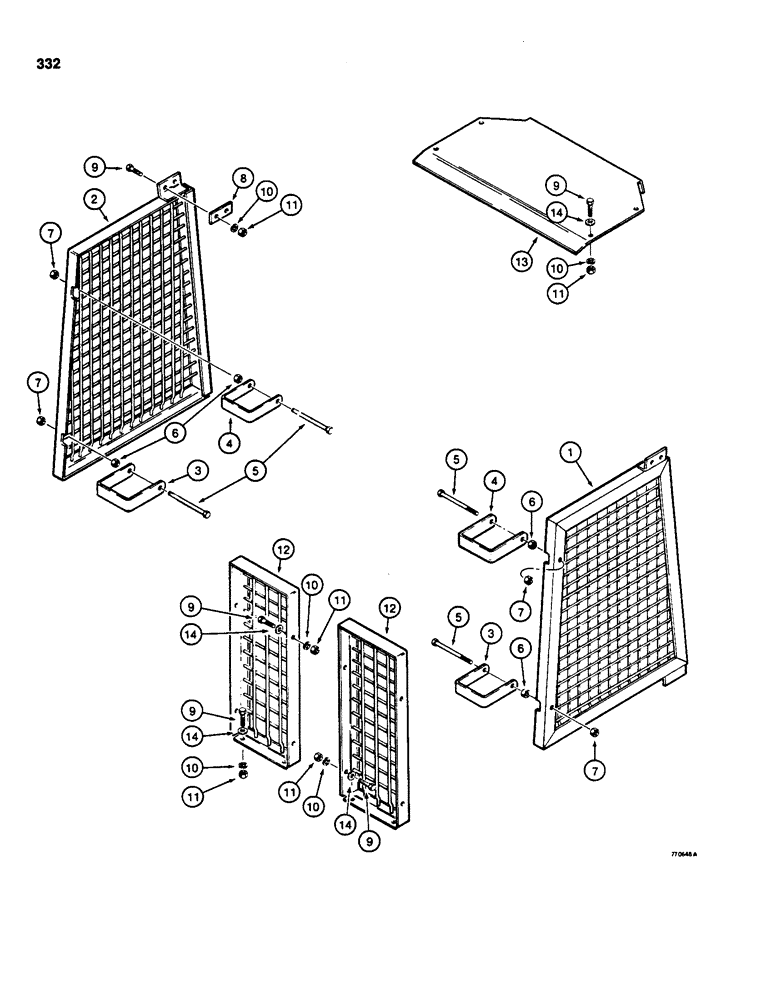

Запчасти Case 855C (332) - BRUSH SCREENS AND CANOPY EXTENSION (05) - UPPERSTRUCTURE CHASSIS
14
7
11
3
14
10
4
9
11
5
11
10
10
1
10
3
12
8
9
5
6
10
6
13
2
14
5
12
4
9
14
9
11
7
6
11
9
7
7
№
Артикул
Название
Примечание
Количество
1
F96632
SCREEN
- side, right-hand
1шт.
2
F96633
SCREEN
- side, left-hand
1шт.
3
F43755
CLAMP
- screen, lower rear
2шт.
4
F44447
CLAMP
- screen, upper rear
2шт.
5
113-443
BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5
4шт.
6
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
7
131-70
NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2" - 13 NC, plated
4шт.
8
F44446
NOZZLE HOLDER
RETAINER - screen, front
2шт.
9
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4-14шт.
10
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4-14шт.
11
129-105
NUT,Hex, 1/2" - 13, Gr 5
8-18шт.
12
F96631
SCREEN
- front, dozer models only
2шт.
13
F44448
CABLE EXTENSION
EXTENSION - canopy, dozer models only
1шт.
14
195-106
WASHER,1/2"
- flat, 1/2"
10шт.
Выбрано товаров: 14
