Запчасти Case 850M WT/LGP (39.100.AB[07]) - FINAL DRIVE, WIDE TRACK (39) - FRAMES AND BALLASTING

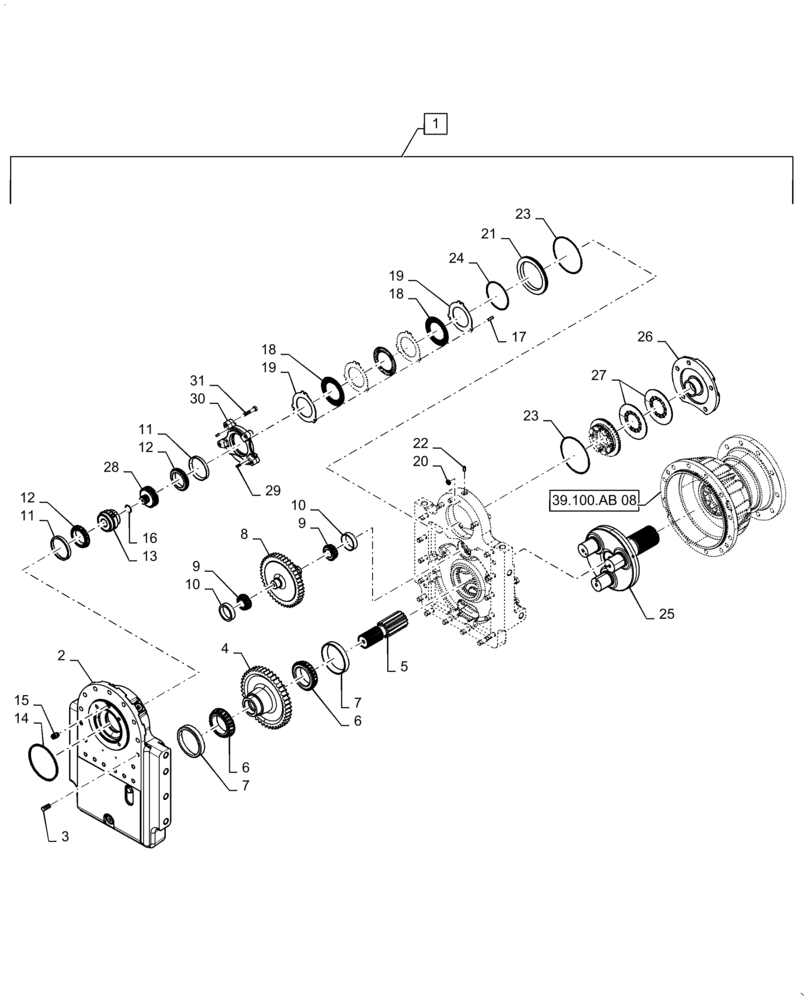

Схема запчастей Case 850M WT/LGP - (39.100.AB[07]) - FINAL DRIVE, WIDE TRACK (39) - FRAMES AND BALLASTING
30
39.100.ab 08
27
14
6
4
5
17
6
10
2
12
7
24
26
29
25
3
18
23
13
12
11
8
19
15
9
23
9
22
28
1
21
16
7
10
20
19
18
11
31

Артикул

Название

Примечание

Количество

1

84490715

TRANSMISSION

Final Drive Assy, Wide Track, Incl 2 - 31, Please See 39.100.AB 08 For Hub Breakdown

1шт.

2

87724625

HOUSING

Final Drive

1шт.

3

837-16040

DOWEL,M16 x 40

6шт.

4

385276A1

GEAR

67 Teeth

1шт.

5

385222A1

GEAR SHAFT

Sun, 13 Teeth

1шт.

6

385268A1

BEARING ASSY,82.55 mm ID x 29.769 mm

2шт.

7

385269A1

BEARING CUP

2шт.

8

385275A1

GEAR

Counter Shaft

1шт.

9

385266A1

BEARING ASSY,34.92 mm ID x 24.608 mm

2шт.

10

385267A1

BEARING CUP

2шт.

11

385265A1

BEARING CUP,103.21mm OD x 11.99mm W

2шт.

12

385264A1

BEARING ASSY,66.67mm ID x 17.25mm W

2шт.

13

385202A2

GEAR

Gear, 19 Teeth

1шт.

14

238-7163

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

1шт.

15

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

16

385240A1

RING, LOCKING

1шт.

17

837-8030

DOWEL,M8 x 30

3шт.

18

84163978

DISC

3шт.

19

385244A2

BRAKE PLATE

4шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

21

385243A2

BRAKE PLATE

1шт.

22

87520608

EXPANSION PLUG,8mm

1шт.

23

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

2шт.

24

385236A2

SEALING RING

1шт.

25

385262A4

PLANET CARRIER

Assembly

1шт.

26

385277A1

PROTECTIVE COVER

1шт.

27

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

2шт.

28

385239A2

CLUTCH INPUT SHAFT

1шт.

29

837-8020

DOWEL,8mm OD x 20mm L

2шт.

30

385246A4

BEARING HOUSING,96 mm ID

1шт.

31

608-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

4шт.

Выбрано товаров: 31
