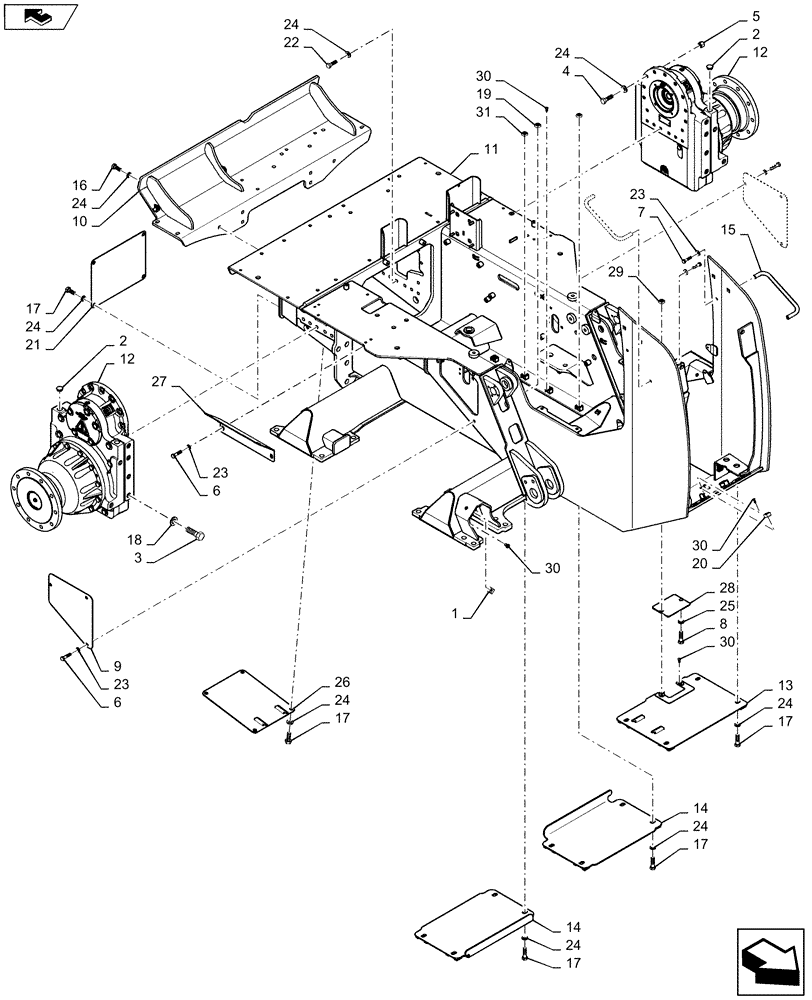

Запчасти Case 850M WT/LGP (39.100.AB[01]) - MAIN FRAME, PAT, NARROW (39) - FRAMES AND BALLASTING

1

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

2

353-432

PLUG,7/8" Hole, Nylon

4шт.

3

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

4

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

14шт.

5

832-10416

NUT,M16 x 2, Cl 8

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

7

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

8

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

9

47358325

COVER

2шт.

10

47365568

SUPPORT

1шт.

11

47453837

FRAME

1шт.

12

84490714

TRANSMISSION

2шт.

13

84554804

PAN

1шт.

14

84554818

PAN

2шт.

15

84559389

HANDLE

2шт.

16

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

6шт.

17

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

20шт.

18

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

10шт.

19

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

27шт.

20

87535798

SQUARE NUT

4шт.

21

87600821

COVER

1шт.

22

87652887

BOLT,Hex, M16 x 60mm, Cl 10.9

16шт.

23

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

14шт.

24

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

58шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

26

87706438

PAN

1шт.

27

87706450

COVER

1шт.

28

87710382

COVER

1шт.

29

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

30

336371A1

PIN,4.88mm OD x 14.23mm L

63шт.

31

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

28шт.

32

47809405

WEAR PLATE

2шт.

33

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

8шт.
