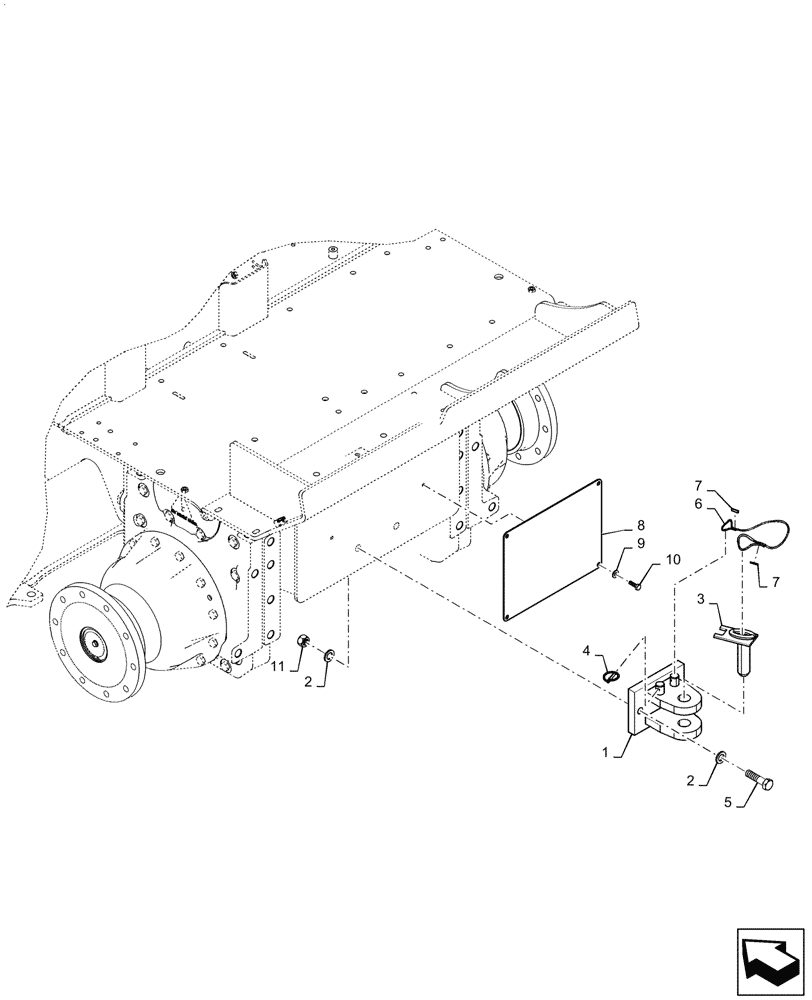

Запчасти Case 850M WT/LGP (37.106.AA[01]) - REAR, TOW HOOK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47496429

HOOK

Rear Pull Hook

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

3

431997A1

TOWBAR PIN

Pin/ W Drawbar

1шт.

4

A30338

PIN

1 4 X 1.75 KLIK-PIN

1шт.

5

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

Lanyard

2шт.

6

47496259

CABLE,405mm L

1шт.

7

47496260

SLEEVE

Aluminum

2шт.

8

47839773

COVER

Rear

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

11

829-1420

NUT,M20, Cl 10

2шт.
