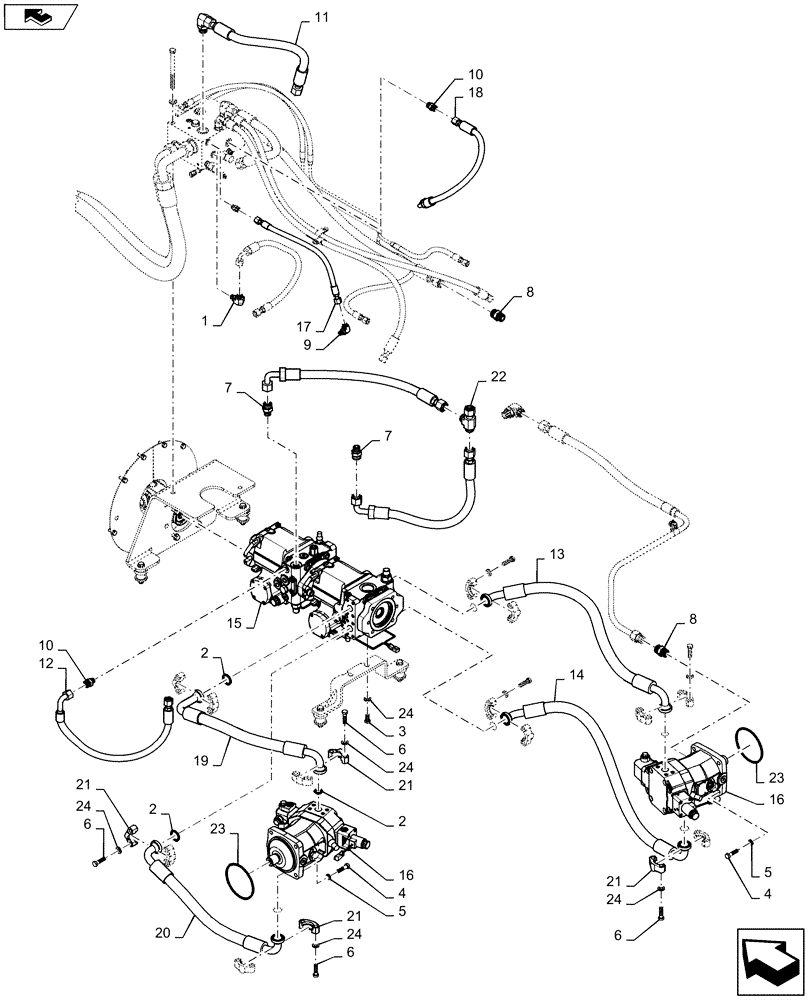

Запчасти Case 850M WT/LGP (29.218.AO[03]) - PUMP, HYDRO (29) - HYDROSTATIC DRIVE

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

8шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

4

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

5

892-11012

LOCK WASHER,M12

8шт.

6

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

32шт.

7

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

2шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

10

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

11

47366088

HOSE

REAR PUMP TO MANIFOLD TP2

1шт.

12

47436589

HYDRAULIC HOSE

HYDRO PUMP FILTER OUTLET

1шт.

13

47526207

HYDRAULIC HOSE

FRONT PUMP TO RH MOTOR TOP

1шт.

14

47526209

HYDRAULIC HOSE

FRONT PUMP TO RH MOTOR BOTTOM

1шт.

15

84319679

HYDROSTATIC PUMP

TANDEM

1шт.

15

84319679R

REMAN-HYDROSTAT PUMP

850M LT, 850M WT/LGP, Both Tier 4A

1шт.

15

84319679C

CORE-HYDROSTAT PUMP

Return Number

1шт.

16

84319681

HYDROSTATIC MOTOR

MOTOR, HYDRO ASSY, 80CC

2шт.

16

84319681R

REMAN-HYDROSTAT MOTO

850M LT, 850M WT/LGP, Both Tier 4A

2шт.

16

84319681C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

17

84422715

HYDRAULIC HOSE

YST2 PORT

1шт.

18

84426523

HYDRAULIC HOSE

PUMP G TO MANIFOLD P

1шт.

19

84566369

HYDRAULIC HOSE

REAR PUMP TO LH MOTOR TOP

1шт.

20

84566371

HYDRAULIC HOSE

REAR PUMP TO LH MOTOR BOTTOM

1шт.

21

86980732

CLAMP

SPLIT FLANGE DN25 400 BAR

16шт.

22

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

SWIVEL RUN ORFS 20MM

1шт.

23

87477180

O-RING

0.103 X 5.487

2шт.

24

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

34шт.
