Запчасти Case 850M WT/LGP (29.218.AO[01]) - PUMP, HYDRO (29) - HYDROSTATIC DRIVE

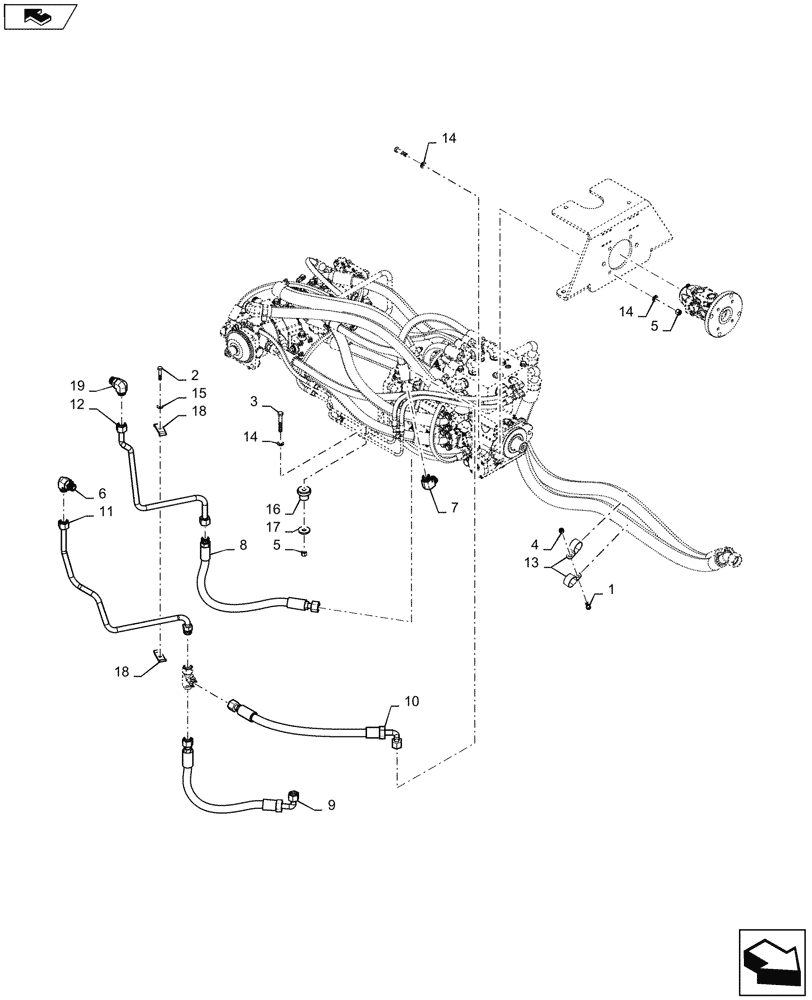

Схема запчастей Case 850M WT/LGP - (29.218.AO[01]) - PUMP, HYDRO (29) - HYDROSTATIC DRIVE
14
3
1
12
6
18
5
19
13
14
10
8
14
4
15
5
16
11
2
15
17
9
18
7
home

Артикул

Название

Примечание

Количество

1

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

2

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

3

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

7

47376381

BRACKET

FRONT PUMP MOUNT

1шт.

8

47524102

HYDRAULIC HOSE

FILTER OUTLET

1шт.

9

47524774

HYDRAULIC HOSE

FILTER TO RR PUMP FE

1шт.

10

47525786

HYDRAULIC HOSE

FILTER TO FRONT PUMP FE

1шт.

11

47526289

HYD TUBE

FILTER OUTLET

1шт.

12

47526292

HYD TUBE

FILTER INLET

1шт.

13

86639007

CLAMP,44.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

14

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

2шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

16

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

INSULATOR PLATFORM MOUNTING

2шт.

17

D25022

WASHER

17/32" ID, 1 3/4" OD

2шт.

18

D40236

CLAMP

Hose Clamp

2шт.

19

47743826

HYD CONNECTOR

1шт.

Выбрано товаров: 19
